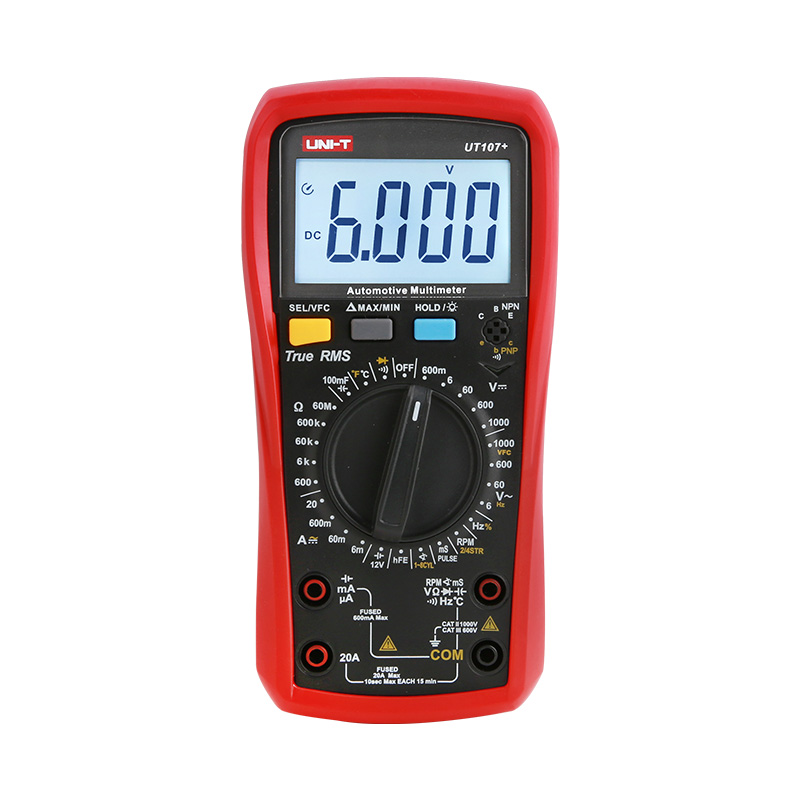

MULTIMETRE AUTOMOBILE MULTI USAGE VRAI RMS

UT1/07+

Status: In stock

CA$69.99

Description

Description

● True RMS
● 1000V AC/DC voltage measurement
● 20A AC/DC current measurement (20A for 10s max)
● VFC 1000V voltage measurement
● Dwell angle 1-8CYL
● RPM 2STR/4STR

● Capacitance/Pulse width/12V battery test (UT107+)
● Temperature/Resistance/Frequency
● Data hold/Relative mode/Duty cycle
● Diode/Transistor
● Backlight
● CAT II 1000V / CAT III 600V

Specifications

Specifications

Specifications Range UT105+ UT107+
DC voltage (V) 400mV/4V/40V/400V/1000V ±(0.5%+3)
600mV/6V/60V/600V/1000V   ±(0.5%+3)
AC voltage (V) 4V/40V/400V/1000V ±(0.8%+3)
6V/60V/600V/1000V   ±(0.8%+3)
AC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(1.0%+8)
6mA/60mA/600mA/10A (20A for 10s max)   ±(1.0%+8)
DC current (A) 4mA/40mA/400mA/10A (20A for 10s max) ±(0.8%+8)
6mA/60mA/600mA/10A (20A for 10s max)   ±(0.8%+8)
Resistance (Ω) 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ ±(0.8%+3)
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ   ±(0.8%+3)
Capacitance (F) 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF/100mF   ±(3%+10)
Frequency (Hz) 10Hz~10MHz ±(0.1%+5） ±(0.1%+5)
Temperature (℃) -40℃~1000℃ ±(1.0%+3) ±(1.0%+3)
Temperature (℉) -40℉~1832℉ ±(1.5%+5) ±(1.5%+5)
VFC 1000V ±(2.0%+10) ±(2.0%+10)
RPM 2STR ±(3.0%+5) ±(3.0%+5)
4STR ±(3.0%+3) ±(3.0%+3)
Dwell angle 1CYL(0～356.4°)/2CYL(0～178.2°)/3CYL(0～118.8°)/4CYL(0～89.1°)/5CYL(0～71.3°)/6CYL(0～59.4°)/8CYL(0～44.5°) ±(3.0%+5) ±(3.0%+5)
Pulse width 999.9mS   ±(1.5%+10)
Features
Display count   4000 6000
Manual range   √ √
Continuity/diode/transistor   √ √
Duty cycle

&
