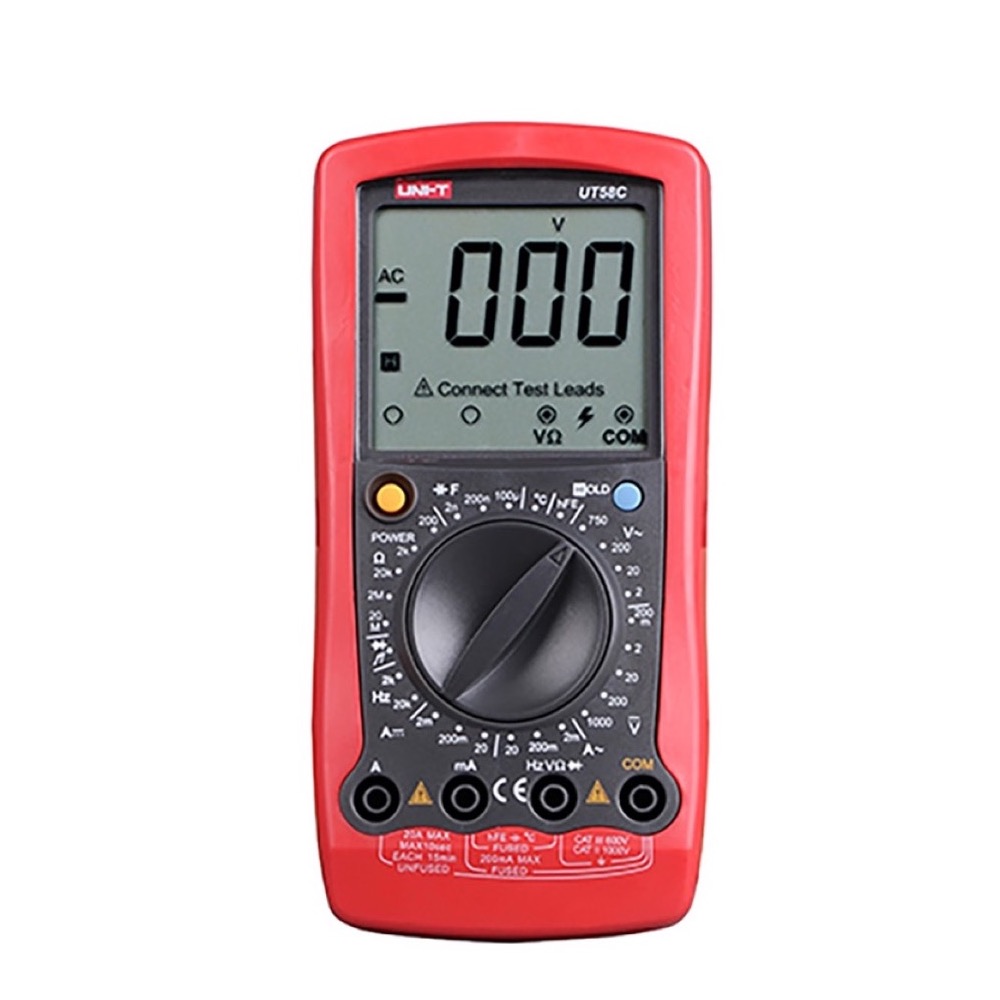

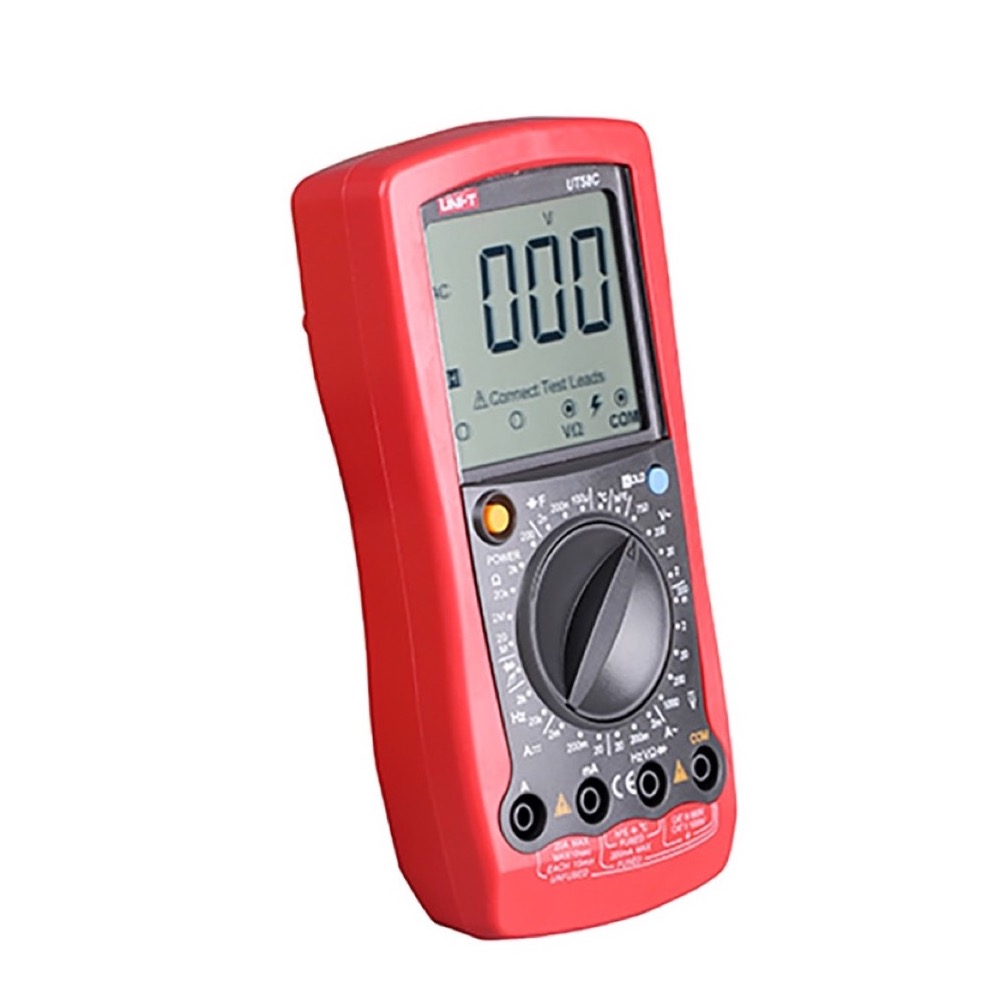

MULTIMETRE-CAP.,TEMP.&FREQ. TEST

UT5/8C

Status: In stock

CA$49.99
  • 10 - CA$44.99 per UN

Description

Description

● 2000 display count, refresh rate 2~3 times/s
● Function symbols and test lead connection indication
● Transistor measurement
● Temperature measurement mode, with K-type temperature probe
● Diode and continuity buzzer; auto power off； overload protection
● Data hold; 20A AC/DC current measurement

Specifications

Specifications



Specifications Range UT58A UT58B UT58C UT58D UT58E
DC voltage (V) 200mV/2V/20V/200V/1000V ±(0.5%+1) ±(0.5%+1) ±(0.5%+1)   ±(0.05%+3)
200mV/20V/200V/1000V       ±(0.5%+1)
AC voltage (V) 2V/20V/200V/750V ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
2V/200V/1000V       ±(0.8%+3)
2V/20V/200V/1000V         ±(0.5%+10)
DC current (A) 20μA/2mA/20mA/200mA/20A ±(0.8%+1)
2mA/20mA/200mA/20A   ±(0.8%+1)
2mA/200mA/20A     ±(0.8%+1) ±(0.8%+1) ±(0.5%+5)
AC current (A) 2mA/200mA/20A ±(1%+3) ±(1%+3) ±(1%+3) ±(1%+3)
20mA/200mA/20A         ±(0.8%+10)
Resistance (Ω) 200Ω/2kΩ/20kΩ/2MΩ/20MΩ/200MΩ ±(0.8%+1) ±(0.8%+1)
200Ω/2kΩ/20kΩ/2MΩ/20MΩ     ±(0.8%+1)
200Ω/2kΩ/200kΩ/2MΩ/20MΩ       ±(0.8%+1)
200Ω/2kΩ/20kΩ/2MΩ/200MΩ
