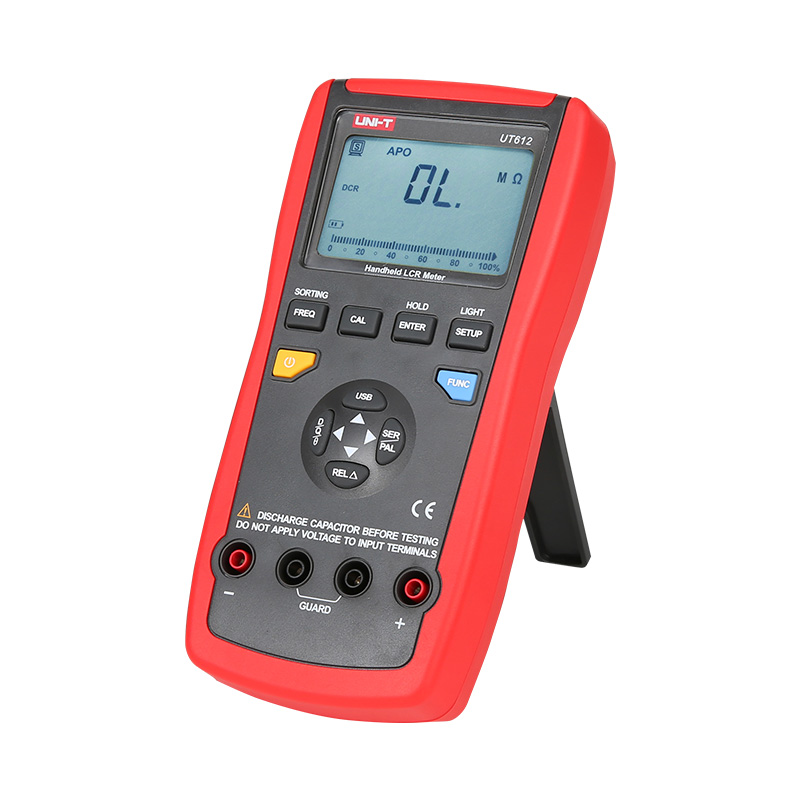

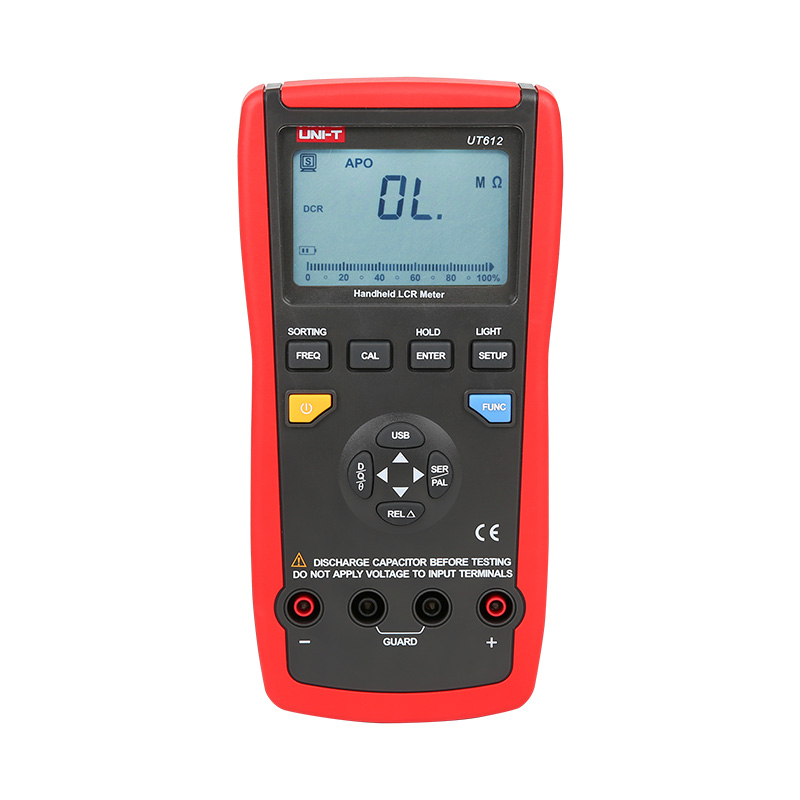

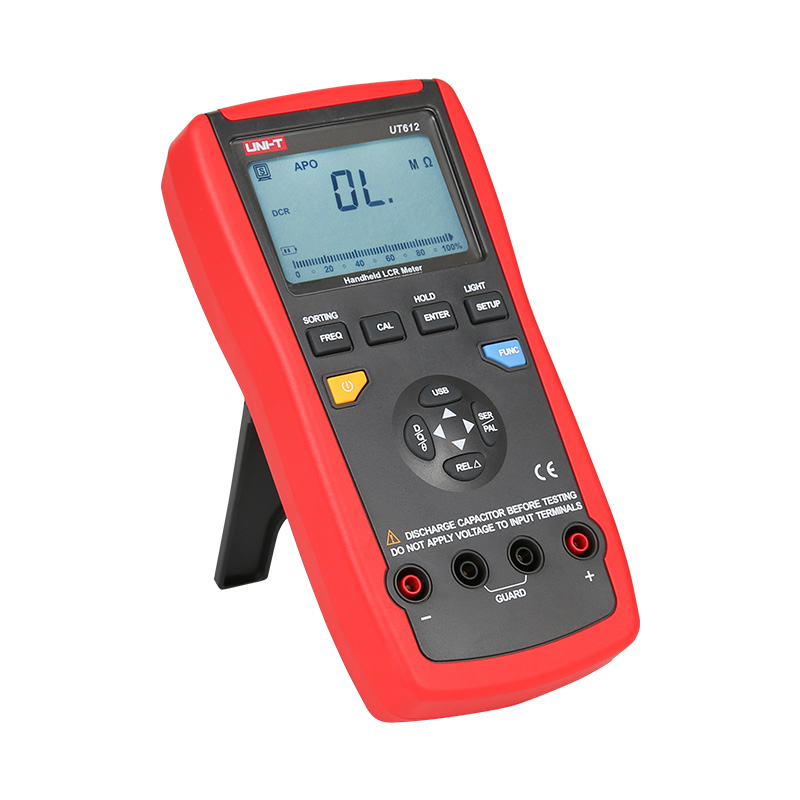

MULTIMETRE L/C/R/DCR/Q/D/?/ESR

Status: Out of Stock

CA$239.99

Qty:

Description

● Auto power off

● Data hold

● Relative mode

● USB interface

● LCD backlight

● Deviation ratio measurement

● Comparison function

● Calibration funtion

● Output impedance: 120Ω

● Auto LCR check and measurement

● Low battery indication: ≤6.8V

Specifications	Range	UT612
Inductance (H)	20uH~2000H	±(0.5%+5)
Capacitance (F)	200pF~20mF	±(0.5%+5)
Resistance (Ω)	20Ω~200MΩ	±(0.3%+5)
Test frequency (Hz)	100Hz/120Hz/1kHz/10kHz/100kHz	√
Operating voltage	0.6Vrms	√
Test parameters	L/C/R/DCR/Q/D/θ/ESR	√
Features
Display count		20000
D/Q display count		2000
D/Q resolution	0.001	√
Auto range		√
Test frequency real-time display		√
Measurement mode	Series/Parallel	√
Auto power off		√
Low battery indication	≤6.8V	√
Data hold		√
Relative mode		√
USB interface		√
USB interface/PC data records		60000
LCD backlight		√
Analog bar graph		26
Deviation ratio measurement		√
Comparison function		√
Calibration function		√
Output impedance	120Ω	√
Auto LCR check and measurement		√
