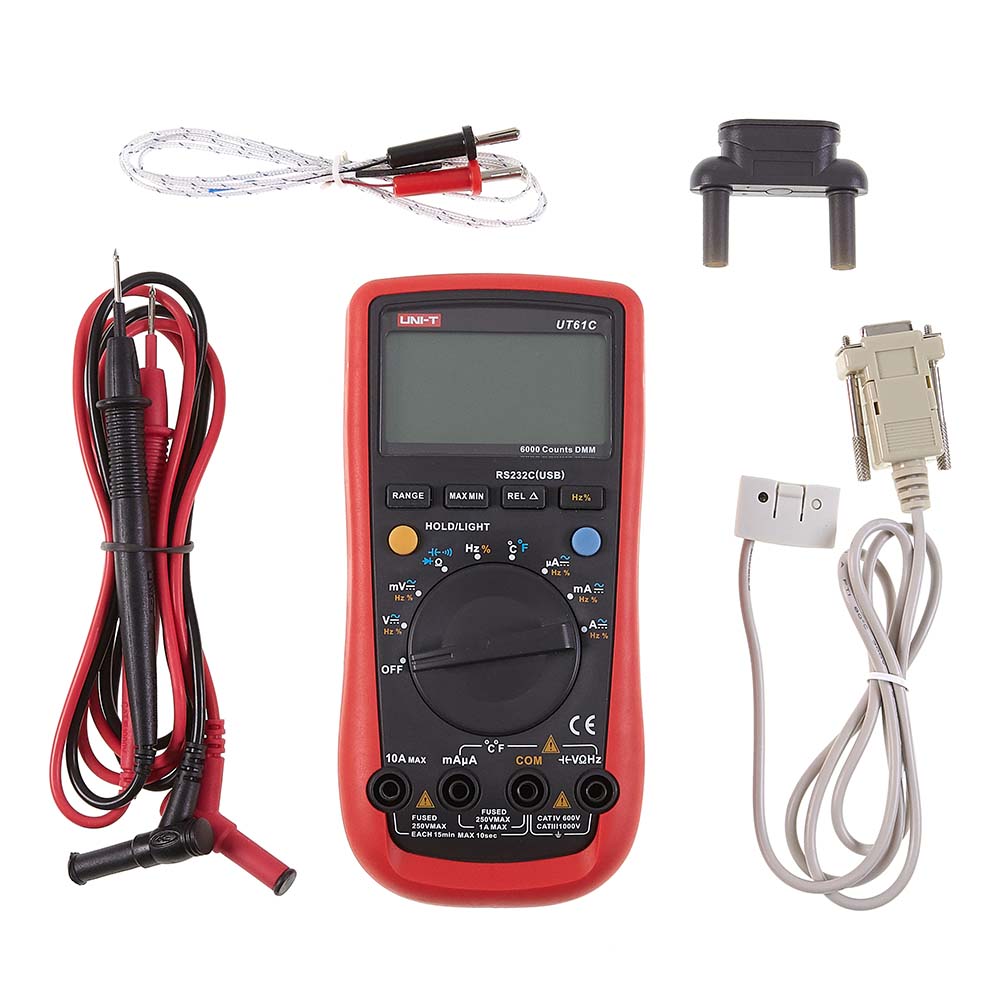

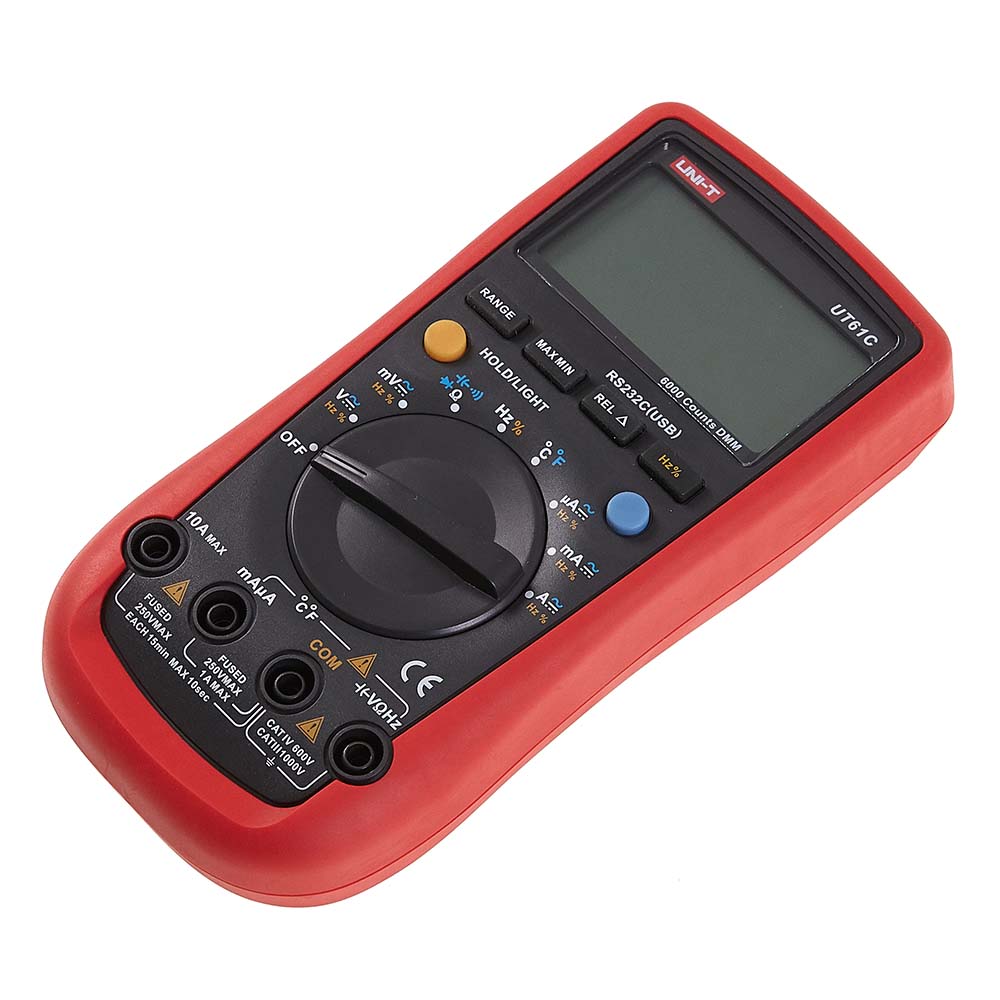

MULTIMETRE DIGITAL MODERNE

UT6/1C

Status: Out of Stock

CA$99.99

Description

Description

●  Auto range
●  MAX/MIN/REL mode
●  Auto power off
●  LCD backlight

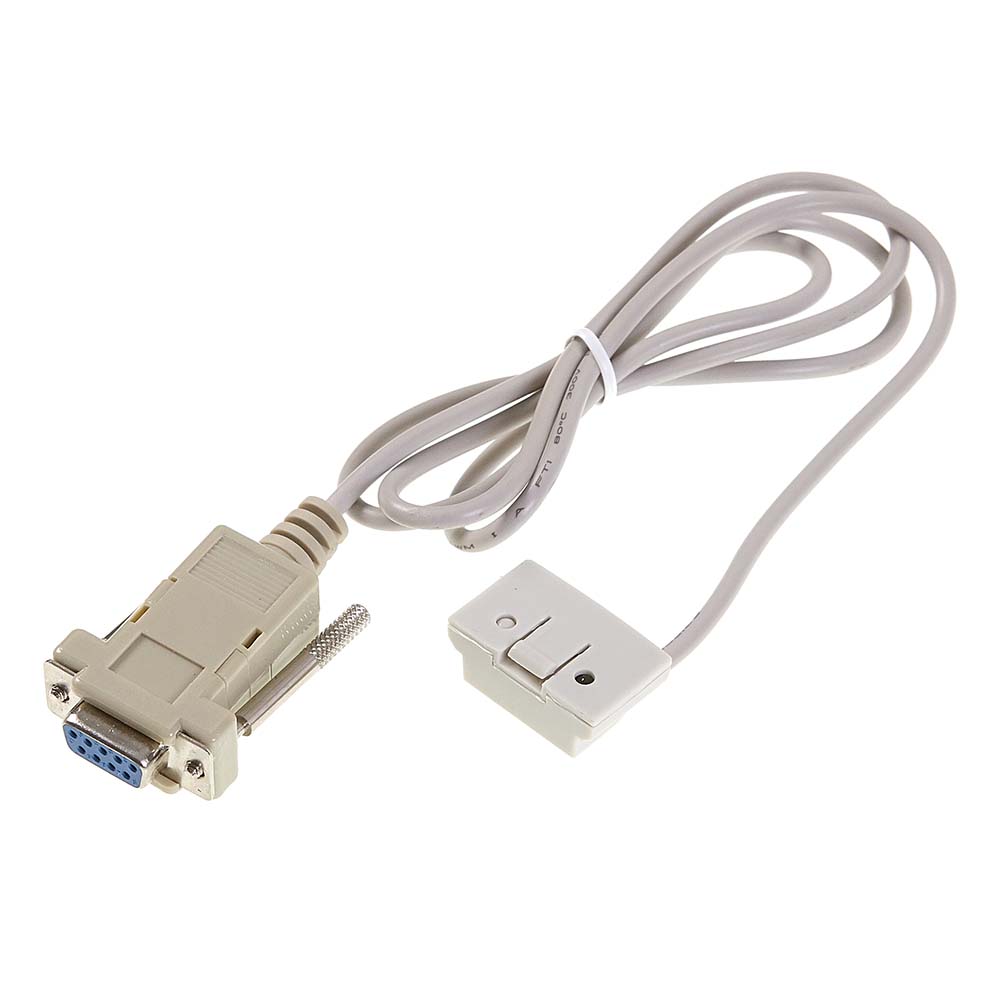

●  RS-232 and USB interface
●  Analog bar graph
●  Low battery indication

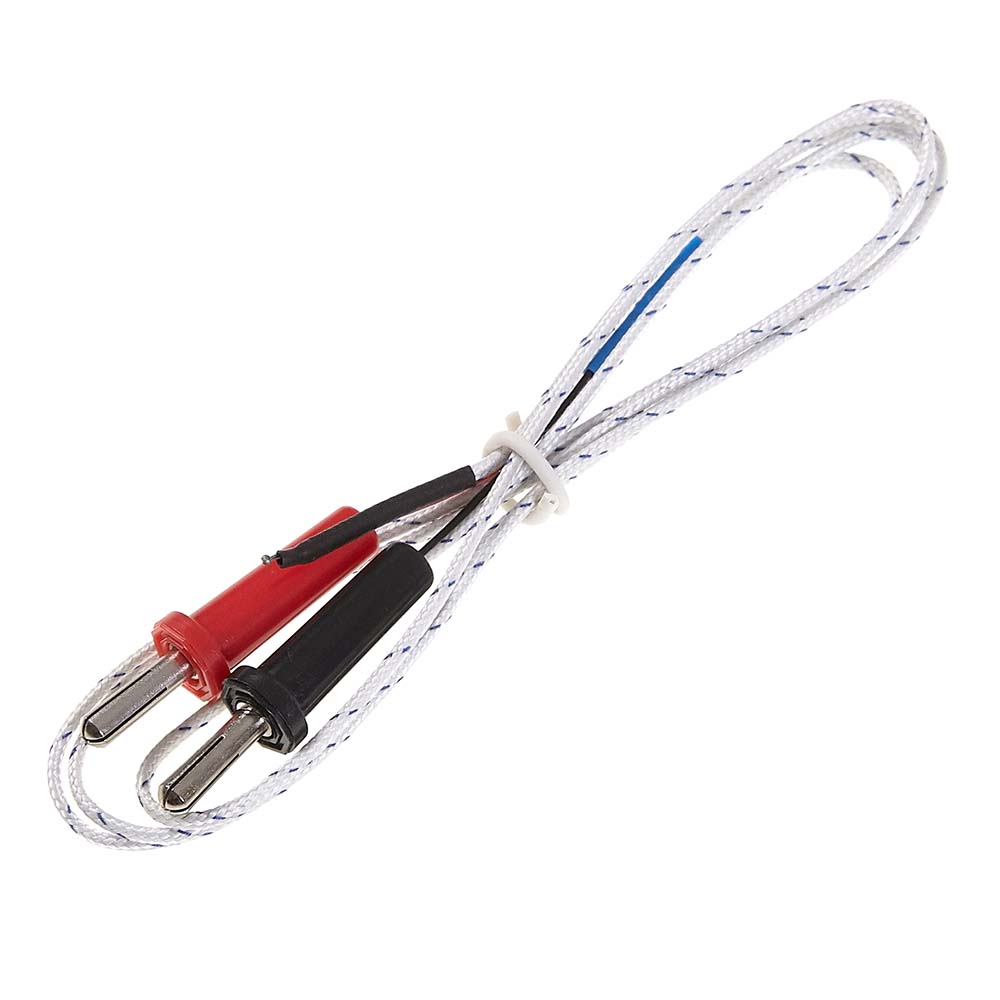

●  K-type temperature probe
●  Diode/continuity buzzer
●  Data hold
●  Input protection

Specifications

Specifications



Specifications Range UT61A



(Discontinued)

 UT61B



(Discontinued)

 UT61C



(Discontinued)

 UT61D



(Discontinued)

 UT61E
DC voltage (V) 1000V ±(0.5%+1) ±(0.5%+1) ±(0.5%+1) ±(0.5%+1) ±(0.1%+2)
AC voltage (V) 750V ±(1%+3) ±(1%+3) ±(1%+3) ±(1%+3) ±(0.8%+10)
DC current (A) 10A ±(1%+2) ±(1%+2) ±(1%+3) ± (1%+3) ±(0.5%+10)
AC current (A) 10A ±(1.2%+5) ±(1.2%+5) ±(1.2%+5) ±(1.2%+5) ±(0.8%+10)
Resistance (Ω) 40MΩ ±(1%+2) ±(1%+2)
60MΩ     ±(1%+2) ±(1%+2)
220MΩ         ±(0.5%+10)
Capacitance (F) 4000μF ±(3%+5) ±(3%+5) ±(3%+5) ±(3%+5)
220mF         ±(3%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4) ±(0.1%+4) ±(0.1%+4) ±(0.1%+4)
10Hz~220MHz         ±(0.01%+5)
Temperature -40°C~1000°C   ±(1.2%+3) ±(1.2%+3)
-40°F~1832°F
