DSO 2 CANAUX 25MHZ cETLus

UTD/2025CL

Status: Out of Stock

CA$349.99

Description

Description

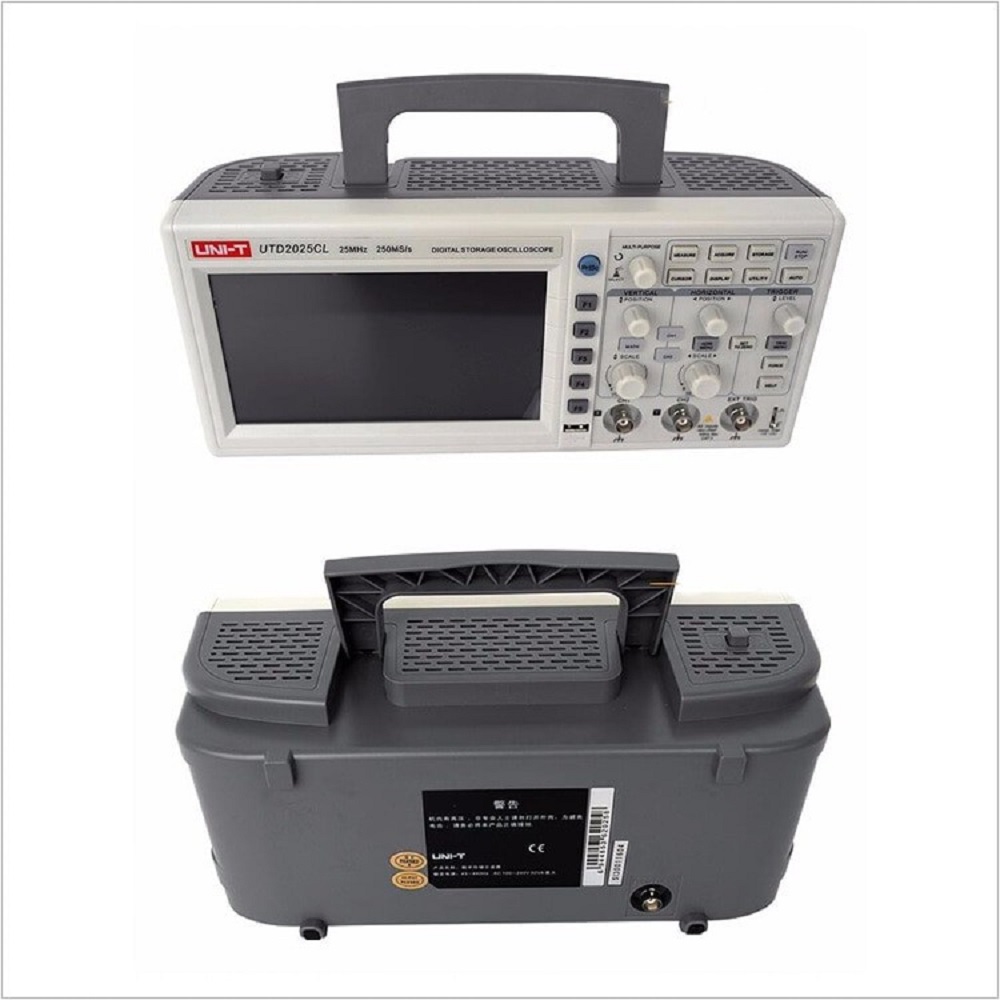

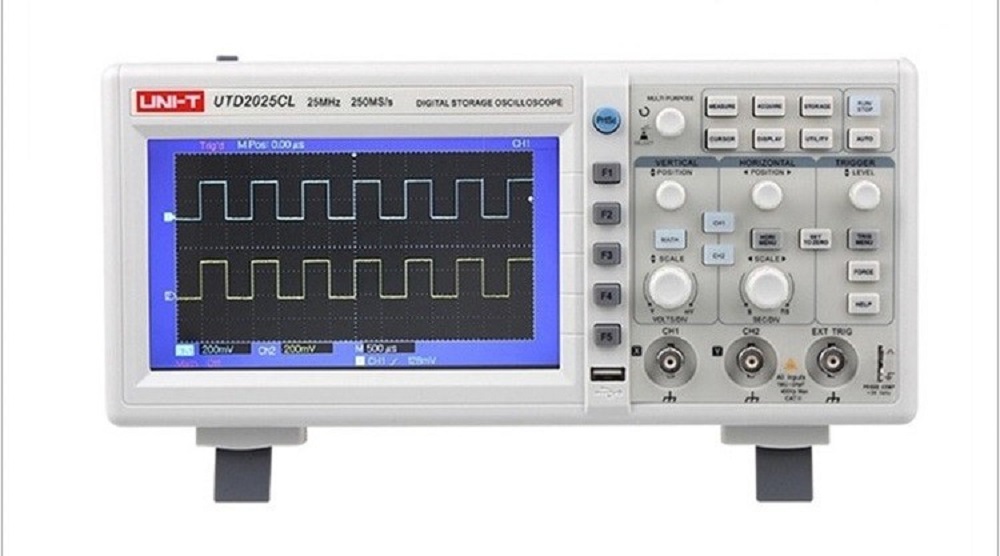

The UNI-T UTD2025CL Oscilloscope is ideal for beginners or students at school because of the basic specifications. It has 2 analog channels with a high sensitivity and it can process signals with a frequency up to 25MHz. The oscilloscope has digital storage and it supports plug-and-play USB storage devices. Although the memory size is a bit low it will be fast enough for your basic measurements.

The oscilloscope has an unknown price-quality ratio for 2 channels and a bandwidth of 25MHz.

Specifications

Specifications

Bandwidth 25Mhz
Channels 2
Sample rate 250Ms/s
Memory depth 25kpts
Waveform capture rate >=2000wfms/s
Trigger modes Edge, Pulse, Video, Alternate
Vertical sensitivity 1mV/div ~ 20V/div
Horizontal range 10ns/div ~ 50s/div
Display 7" 400x240 TFT LCD
Interface USB OTG, Pass/Fail
Dimensions 306 x 147 x 122mm
DWeight 2.2kg
