RELAIS RF DISTANT4CH 433.9MHZ + XMTR

4 Channel RF Transmitter and Receiver (HD4COMBO)

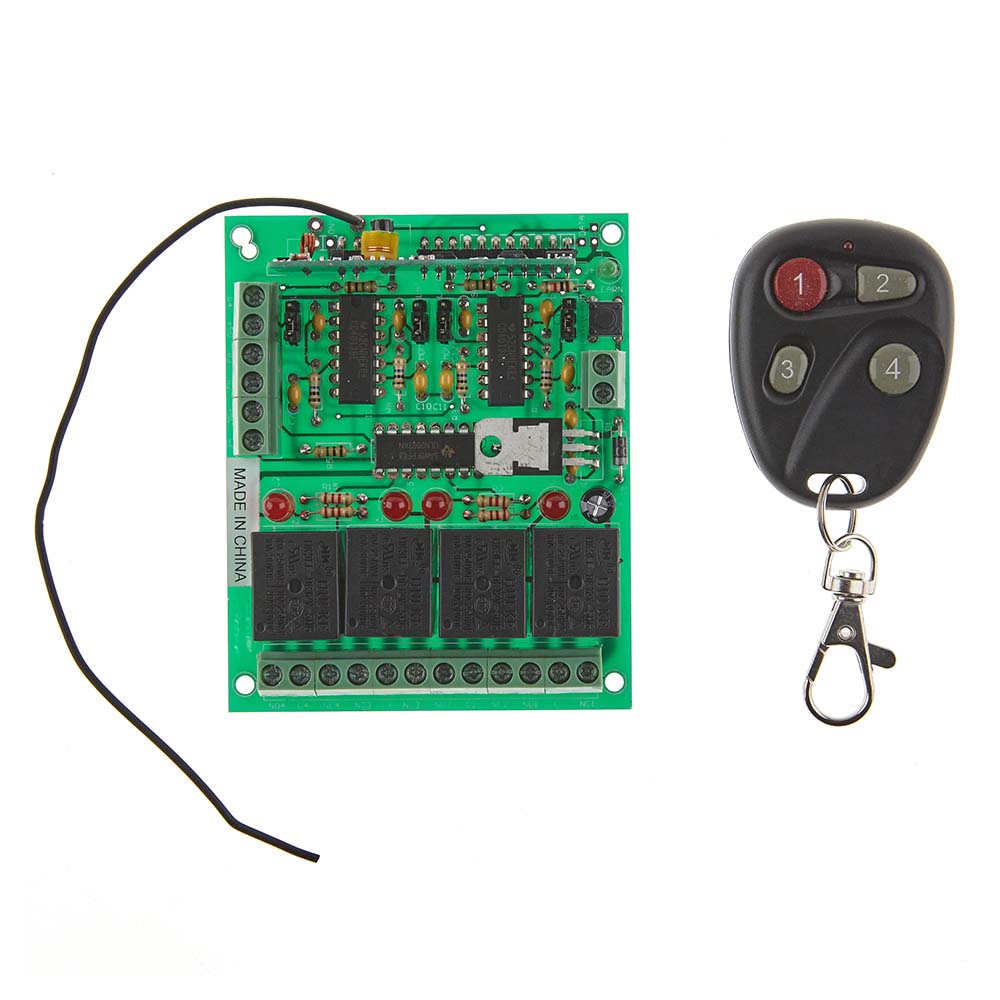

Our HD4COMBO consists of ONE HD4RX Receiver Board and ONE HD4TX Transmitter. This assembled four channel RF Remote Control Relay Board – HD4COMBO –  is an improved version of our original CK1616 unit and is similar to our HD2RX but with 2 additional channels. It uses an auto roll algorithm which makes it almost impossible to steal the code for unauthorized use.

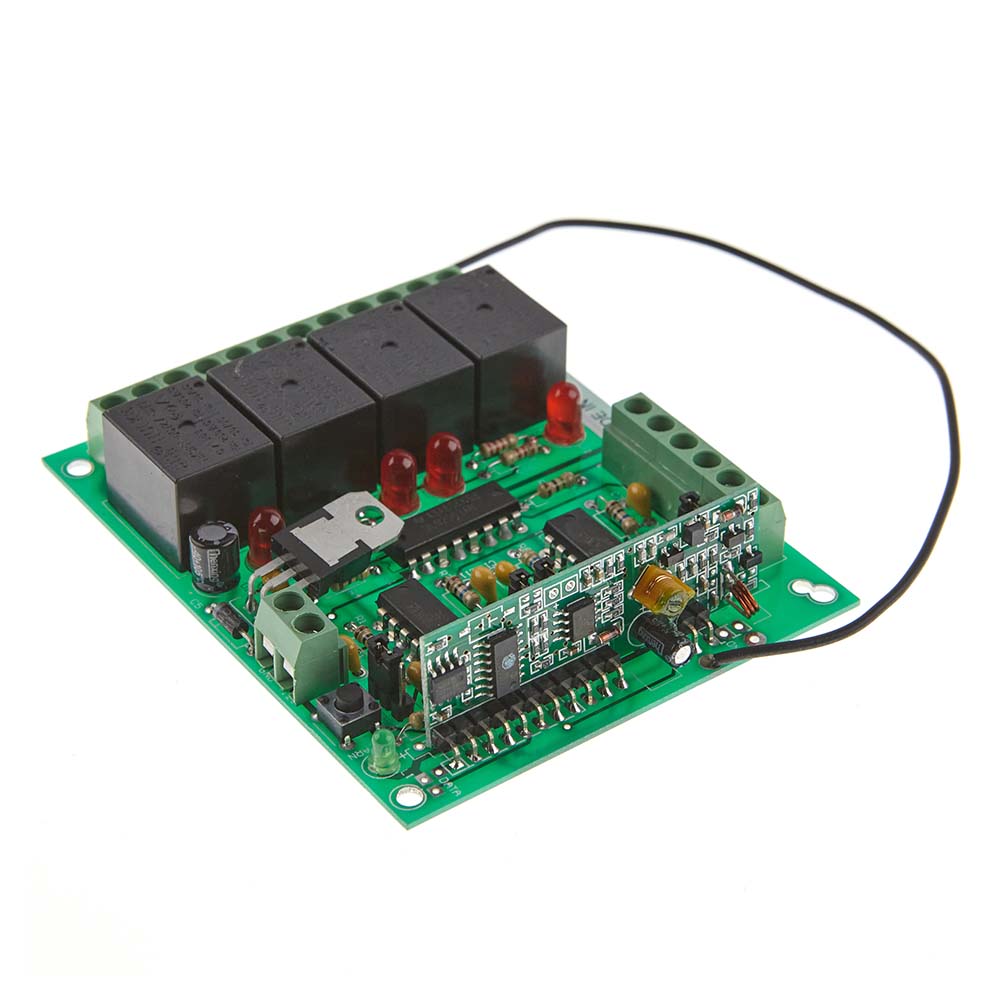

The HD4RX remote control relay board has 4 relays (channels) that are individually jumper select-able as either latching or momentary. Each channel has a reset connection, so you could use a limit switch to reset the relay if you desired. Each channel has led indicators. Each receiver board can support up to 6 transmitters. This unit makes remote control very affordable for you next project.

• Range is up to 250 feet.
• Transmits on 433.9 MHz
• Transmitter includes battery.
• Receiver Power 12  to 20 VDC (power supply not included)
• Circuit draws 10mA in idle state and 4 relays energized draws 120mA.
• Relays have a Common, Normally Closed (NC), and Normally Open (NO).
• Each relay has a reset wiring option for use to reset the relay with a limit switch. (i.e. Garage Door Opener, set relay to latching mode, relay is energized powering door motor, door trips a travel limit switch that is wired back to the relay board turning the relay off.)
• Each Individual Relay is jumper selectable latching or momentary (factory default mode).
• Up to 6 transmitters per receiver board.
• Relay Contact Ratings: 24VDC@10A, 240VAC@7A, 120VAC@10A. (more info on how relays work)

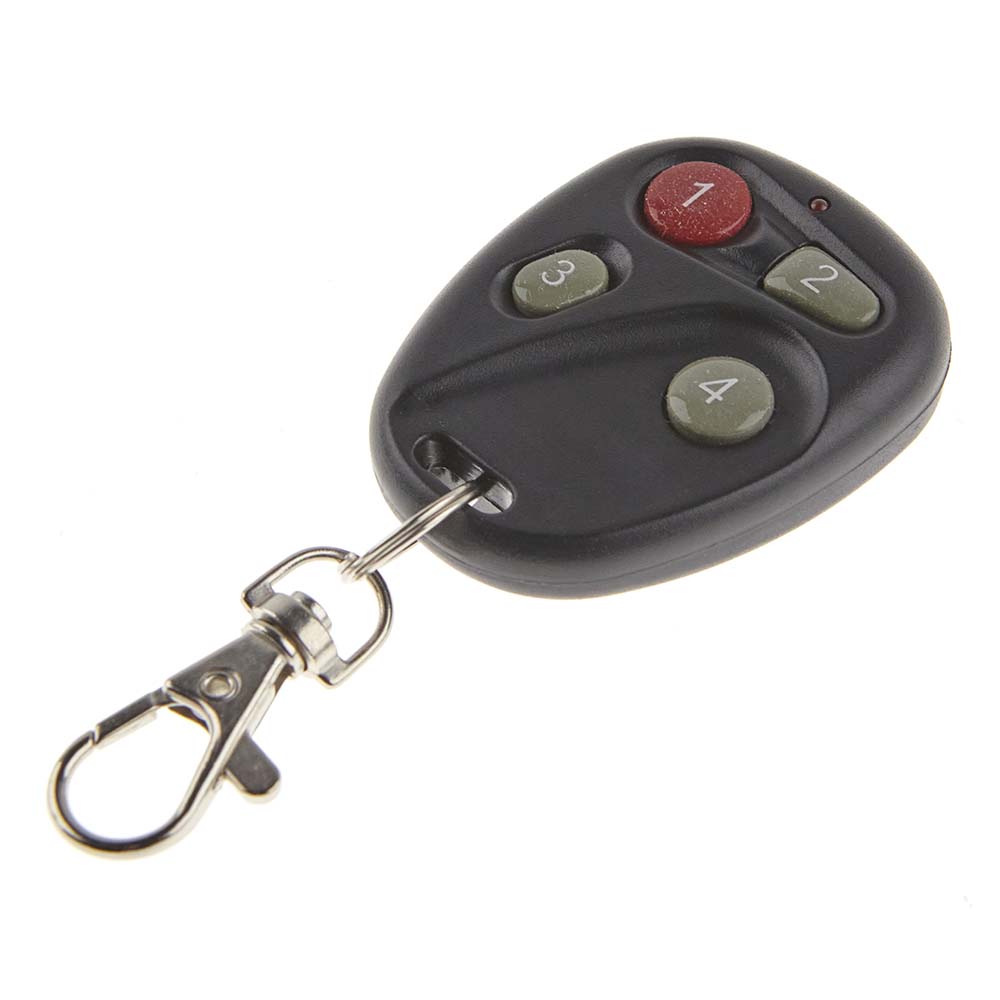

• Transmitter Dimensions 2″ L x 1-1/2″ W x 1/2″ D
• Receiver Board Dimensions 4″ L x 2-7/8″ W x 3/4″ H
• Fully assembled – NO soldering required.

Programming instructions: Apply power to the correct terminals (+ and -), press the “learn” button on the receiver board and hold for only 1 second then let go.  Within 8 seconds press the “1” button on the transmitter 2 times.  Wait 20 seconds, you are now good to go and the RX and TX are paired together.  Repeat the process for any additional or replacement transmitters.  IMPORTANT! The board will appear to be “dead” until the learning process is accomplished.  The data light will flash only when a “learned” transmitter button is pushed.  To “unlearn” all transmitters hold the “learn button down for 8 seconds.  The RED LED lights on the board will only activate when a learned transmitter button is pushed.
