CAM IP TURRET 4MP IR 30m VF 2.8-12mm HILOOK/HIKVISION

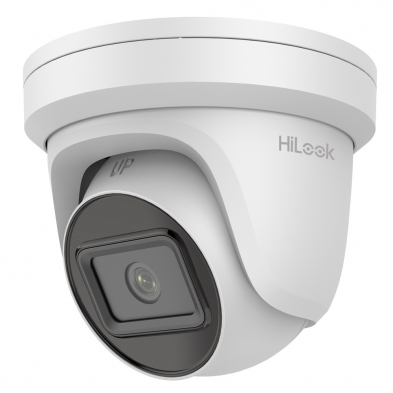

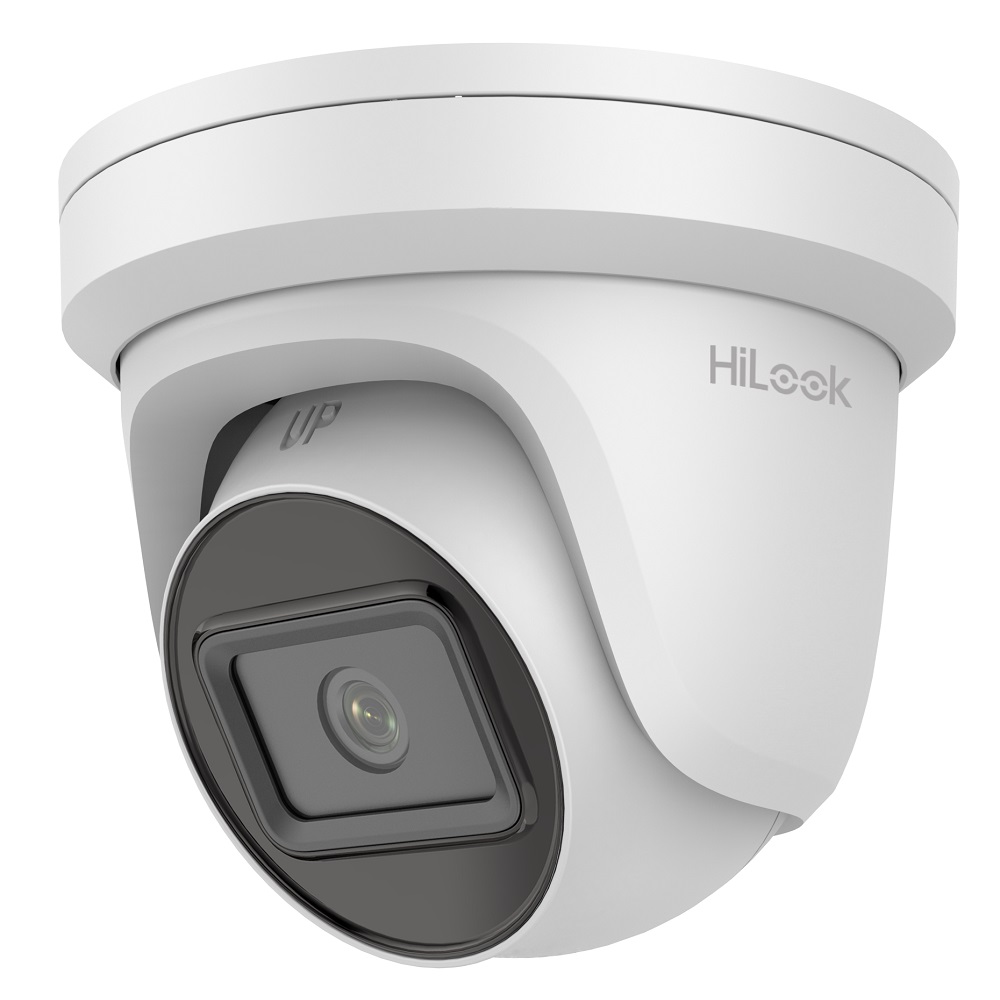

4 MP Motorized Varifocal Turret Network Camera

• High quality imaging with 4 MP resolution
• Efficient H.265+ compression technology to save bandwidth and storage
• Clear imaging against strong back light due to 120 dB true WDR technology
• Water and dust resistant (IP67)
• Motorized varifocal lens for easy installation and monitoring

• Camera
• Image Sensor1/3" Progressive Scan CMOS
• Max. Resolution2560 × 1440
• Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter Time1/3 s to 1/100,000 s
• Day & NightIR Cut Filter
• Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 355°

• Lens
• Lens TypeVarifocal Lens, motoried lens, 2.8 to 12 mm
• Focal Length & FOV2.8 to 12 mm: horizontal FOV 102° to 31°, vertical FOV 54° to 17°, diagonal FOV 123° to 35°
• Lens MountØ14
• Iris TypeFixed
• ApertureF1.6

• Illuminator
• Supplement Light TypeIR
• Supplement Light RangeUp to 30 m
• IR Wavelength850 nm
• Smart Supplement LightYes

• Video
• Main Stream

  50 Hz: 20 fps (2560 × 1440)

  25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

  60 Hz: 20 fps (2560 × 1440)

  30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)

• Sub-Stream

  50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

  60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Video Compression

  Main stream: H.265+/H.265/H.264+/H.264

  Sub-stream: H.265/H.264/MJPEG

• Video Bit Rate32 Kbps to 8 Mbps
• H.264 TypeBaseline Profile/Main Profile/High Profile
• H.265 TypeMain Profile
• Region Of Interest (ROI)1 fixed region for main stream

• Network
• ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live ViewUp to 6 channels
• APIOpen Network Video Interface, ISAPI
• User/HostUp to 32 users. 3 levels: administrator, operator and user
• ClientiVMS-4200, Hik-Connect
• Web Browser

  Plug-in required live view: IE 10+

  Plug-in free live view: Chrome 57.0+, Firefox 52.0+

  Local service: Chrome 57.0+, Firefox 52.0+

• Image
• Image SettingsSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
• Day/Night SwitchAuto, Schedule, Day, Night
• Wide Dynamic Range (WDR)120 dB
• Image EnhancementBLC, 3D DNR

• Interface
• Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
• Reset KeyYes

• Event
• Basic EventMotion detection, video tampering alarm, exception
• LinkageUpload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture

• General
• Power

  12 VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug

  PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W

• DimensionØ129.4 mm × 116.4 mm (Ø5.1" × 4.6")
• Package Dimension170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
• WeightApprox. 560 g (1.2 lb.)
• With Package WeightApprox. 850 g (1.9 lb.)
• Storage Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
• Startup And Operating Conditions-30 °C to 60 °C (22 °F to +140 °F). Humidity 95% or less (non-condensing)
• LanguageEnglish, Ukrainian
• General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
