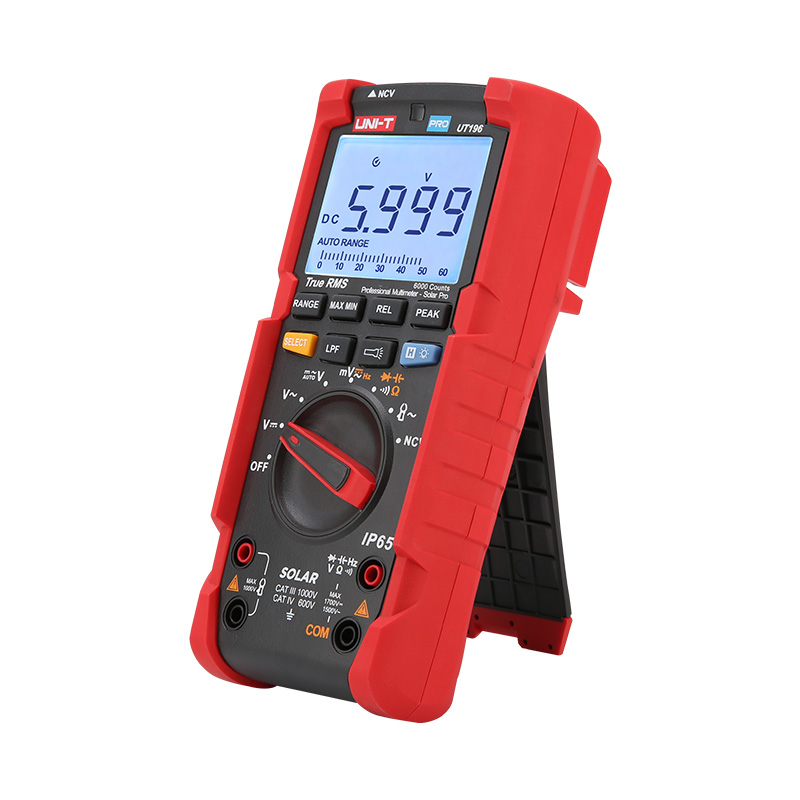

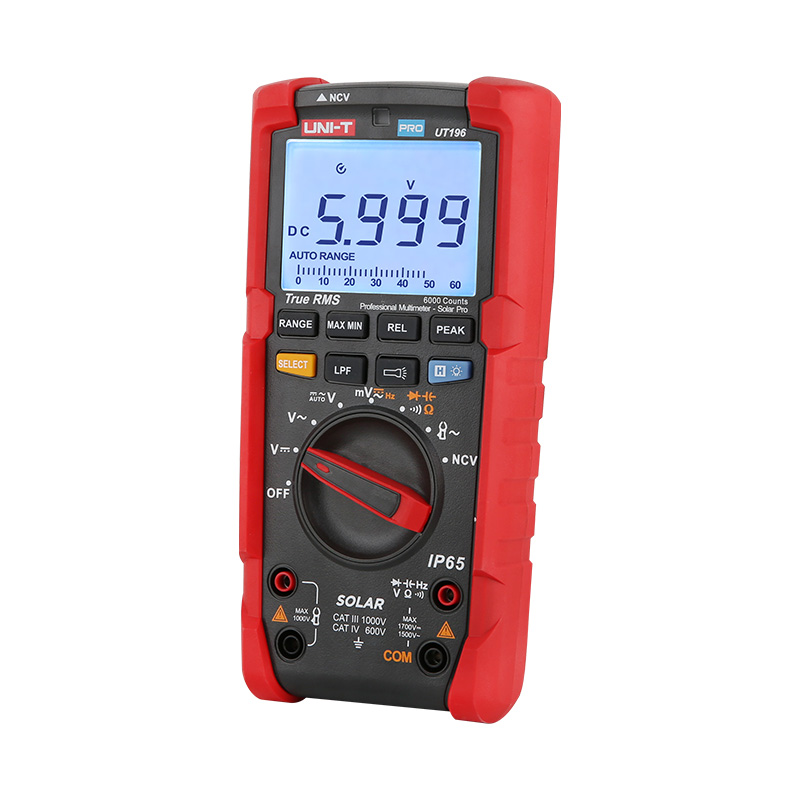

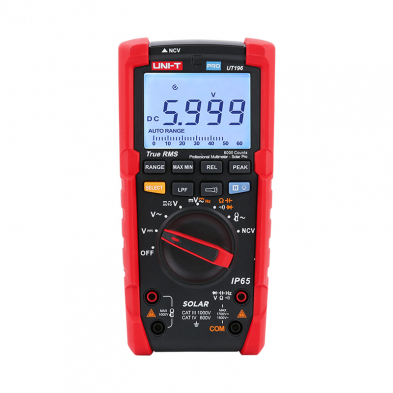

MULTIMETRE PRO SOLAIRE RMS 1700VDC/1500VAC CATIII

UT1/96

Statut: En stock

CA$199.99

Description

Description

● True RMS

● Measure up to 1700V DC and 1500V AC for high voltage applications e.g. solar array, wind
● IP65 protection
● CAT III 1000V, CAT IV 600V
● Analog bar
● Frequency response：45Hz~1kHz
● Low-pass filter function
● Low impedance mode
● Built-in flashlight, bright backlight and visual alarm

Spécifications

Spécifications

Specifications Range UT196
DC voltage(V) 1700V ±(0.2%＋5)
AC voltage(V) 1500V ±(0.8%＋3)
Frequency (Hz) 1MHz ±(0.08%+4)
Resistance(Ω) 60MΩ ±(0.8%＋2)
Capacitance (F) 60mF ±(1.9%+5)
Features
Display count   6000
True RMS   √
Dual display   √
Auto range   √
NCV   √
Diode test   √
Continuity   √
Relative mode   √
Max/Min   √
Peak hold   √
Low pass filter(LPF)   √
Audible visual indication   √
Low battery indication ＜7.5V  approximately √
Data hold   √
Analog bar graph   √
Auto power off  Approximately 15 minutes √
Flashlight   √
IP rating   IP65
Drop test   2m
Safety rating CAT III 1000V, CAT IV 600V
General Characteristics
Power 9V battery
Product color Red+Gray
Product net weight 485g
Product size
