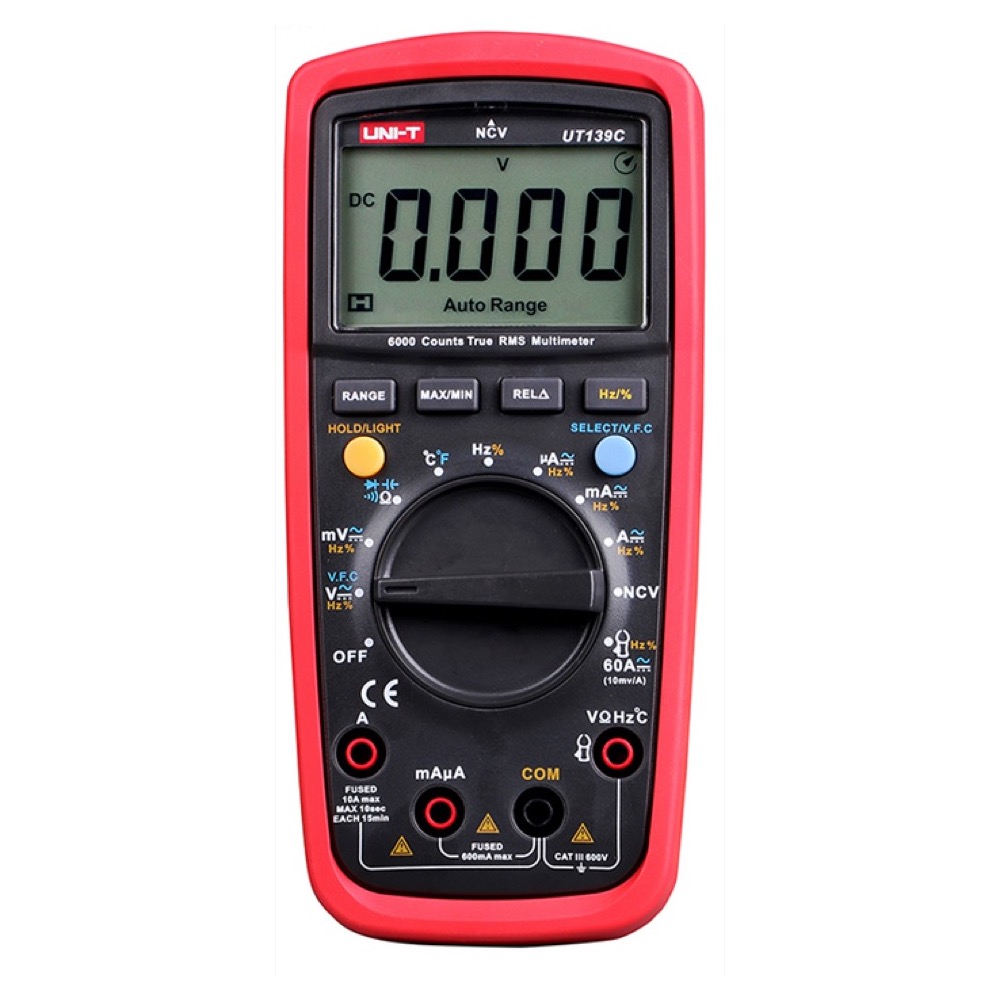

MULTIMETRE VRAI RMS

UT1/39C

Statut: En stock

CA$99.99

Description

Description

● MAX/MIN/REL modes

● Data hold, LED backlight, auto power off
● Full range protection (600V)
● True RMS
● NCV
● Auto/manual ranges selectable

Spécifications

Spécifications

Specifications Range UT139A UT139B UT139C UT139S
DC voltage (V) 600V ±(0.5%+2) ±(0.5%+2) ±(0.5%+2) ±(0.5%+2)
AC voltage (V) 600V ±(1%+3) ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
DC current (A) 10A ± (0.7%+2) ±(0.7%+2) ±(0.7%+2) ±(0.7%+2)
AC current (A) 10A ±(1%+3) ±(1%+3) ±(1%+3) ±(1%+3)
Resistance (Ω) 20MΩ ±(1%+2)
40MΩ   ±(0.8%+2)
60MΩ     ±(0.8%+2) ±(0.8%+2)
Capacitance (F) 99.99mF   ±(4%+5) ±(4%+5) ±(4%+5)
Frequency (Hz) 10Hz~10MHz   ±(0.1%+4) ±(0.1%+4) ±(0.1%+4)
Temperature (°C) -40°C~1000°C     ±(1%+3) ±(1%+4)
Temperature (°F) -40°F~1832°F     ±(1.5%+5) ±(1.5%+5)
Features
Display count   2000 4000 6000 6000
Auto range/Manual range
/True RMS		   √ √ √ √
Bandwidth (Hz)   45Hz~400Hz 45Hz~1kHz 45Hz~1kHz 45Hz~400Hz
NCV/Continuity buzzer
