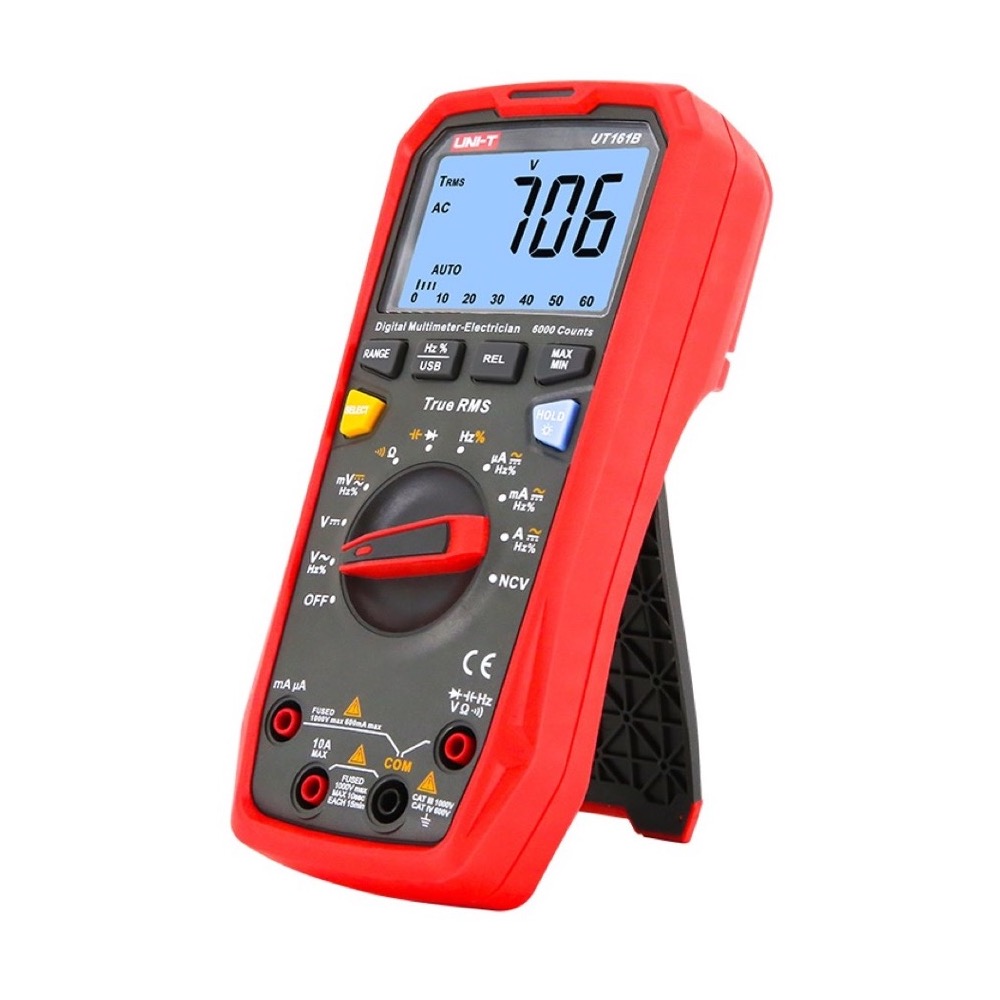

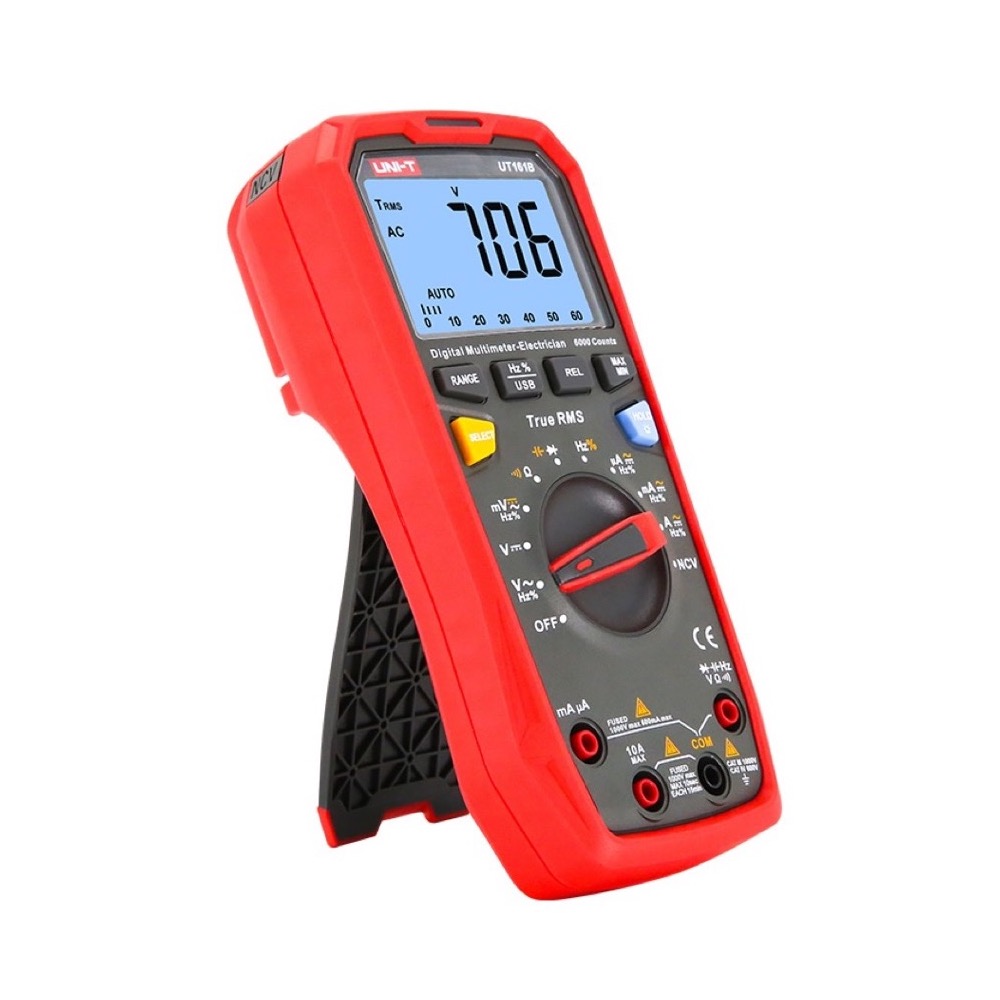

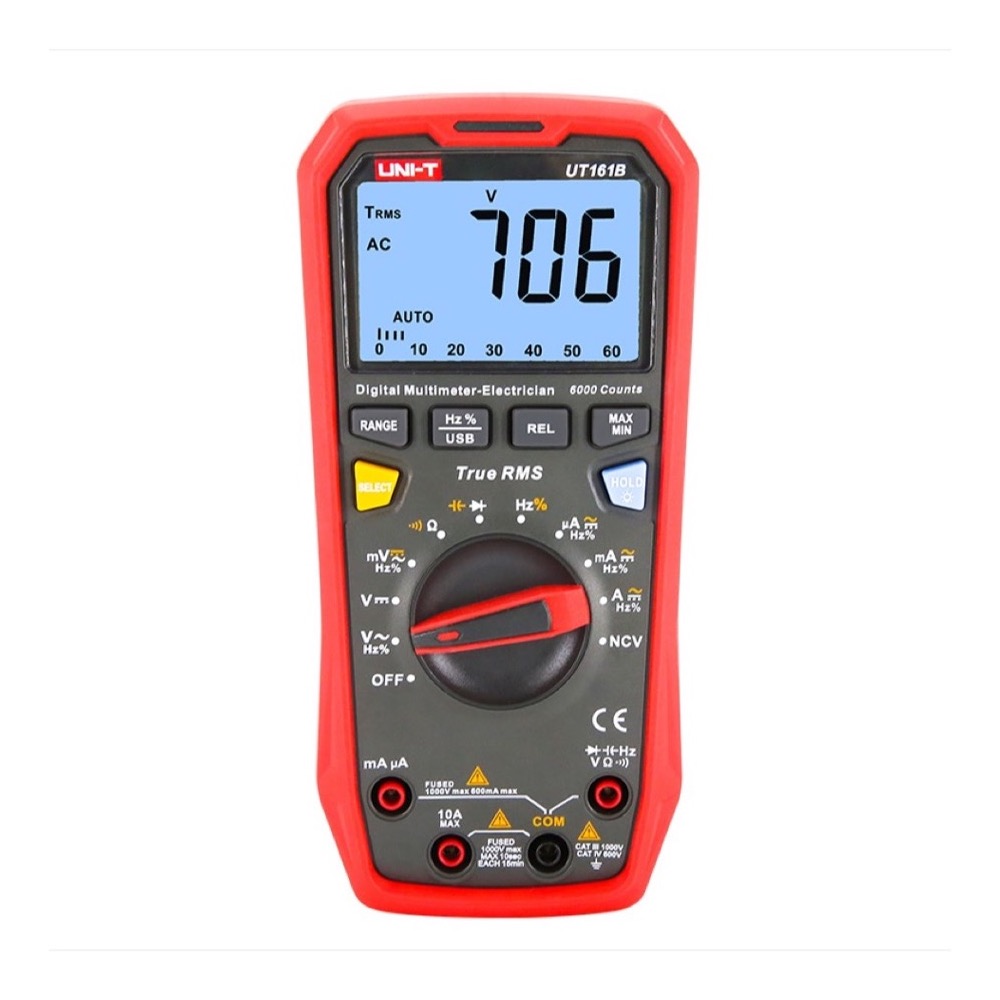

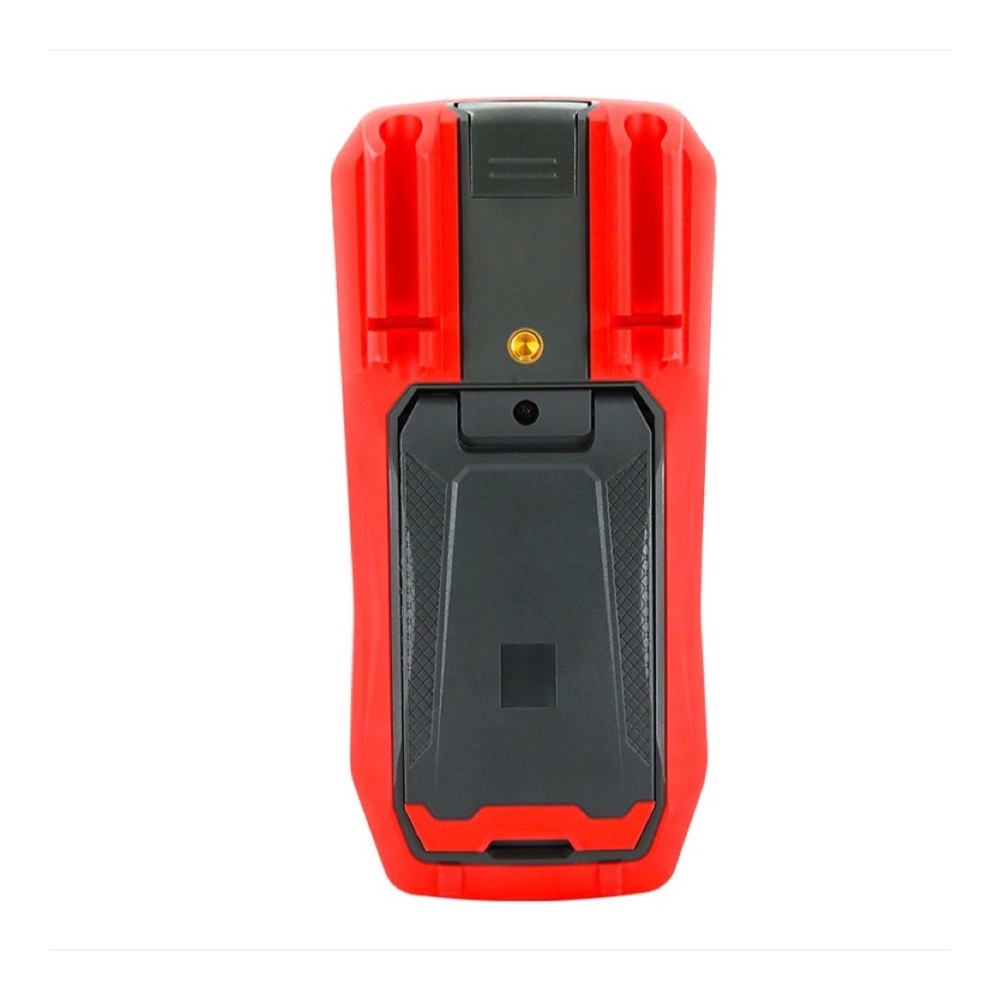

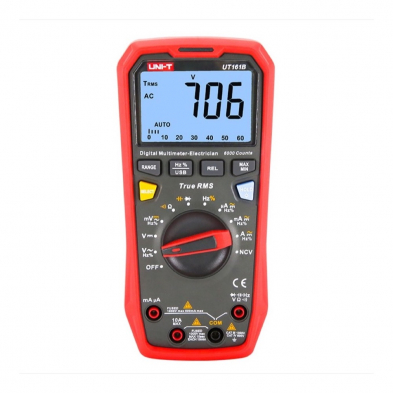

MULTIMETRE VRAI RMS CAT III/ CAT IV

UT1/61B

Statut: En stock

CA$99.99

Description

Description

● True RMS

● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)

Spécifications

Spécifications

Specifications Range UT161B UT161D UT161E
AC voltage (V) 1000V ±(1%＋3) ±(1%＋3) ±(0.8%＋10)
DC voltage (V) 1000V ±(0.5%＋3) ±(0.5%＋3) ±(0.05%＋5)
AC current (A) 10A ±(1.2%＋5)
20A   ±(1.2%＋5) ±(0.8%＋10)
DC current (A) 10A ±(1%＋2)
20A   ±(1%＋2) ±(0.5%＋10)
Resistance (Ω) 60MΩ ±(1%＋2) ±(1%＋2)
220MΩ     ±(0.5%＋10)
Capacitance (F) 60mF ±(3%＋5) ±(3%＋5)
220mF     ±(3%＋5)
Frequency (Hz) 10MHz ±(0.1%＋4) ±(0.1%＋4)
220MHz     ±(0.01%＋5)
Duty cycle (%) 0.1%~99.9% ±(2%＋5) ±(2%＋5) ±(2%＋5)
Temperature (℃/℉)  -40℃~1000℃   ±(1%＋3)
 -40℉~1832℉   ±(1%＋6)
Display count   6000 6000 22000
Bandwidth (Hz)   40Hz~500Hz 40Hz~1kHz 40~10kHz
LPF ACV       √
LoZ ACV
