PINCE AMPEREMETRIQUE 0mA~60.0A AC/DC RS232

UT2/58A

Statut: En stock

CA$199.99

Description

Description

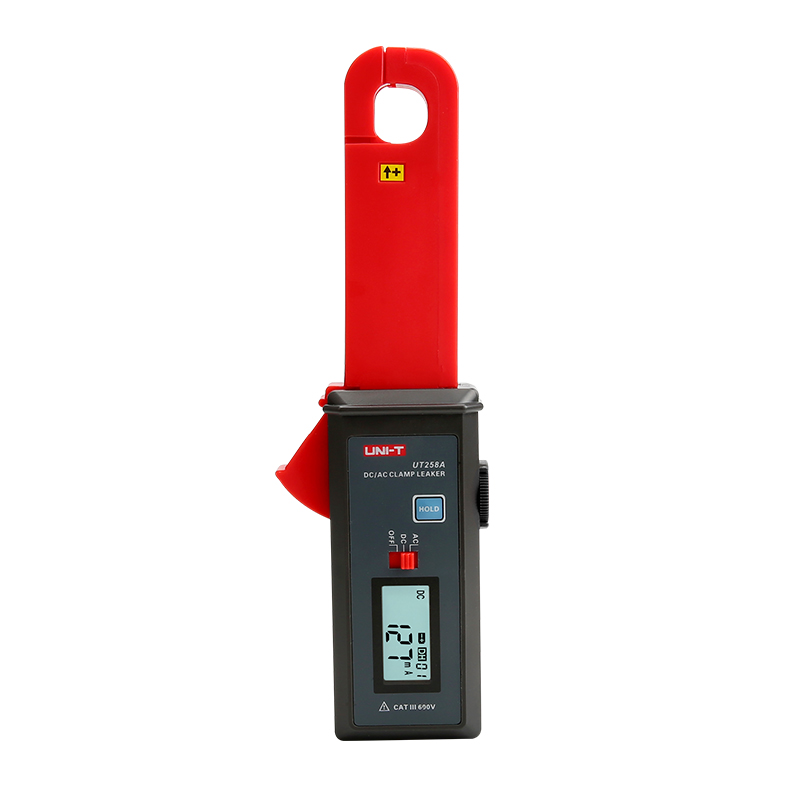

UT258A is well designed for on-line measurement of DC/AC leakage current and current below 600V, which adopts latest CT and digital integration technology. Slender clamp is very suitable for places full of concentrated cables (such as, electric power metering system, high-speed rail system, automobile circuit maintenance and so on). Non-contact measurement ensures operation safety. The meter has mini shape with high accuracy, stable performance and perfect functions.

Spécifications

Spécifications

Specifications Range UT258A
Current (A) 0mA~60.0A AC/DC ±(2%+5)
Resolution 1mA AC/DC
Frequency Response AC: 45HZ~200HZ
Special Functions
Display Mode 4-bit LCD display
Jaw Size φ7mm (max wires O.D.)
Auto Range
RS-232 Data Transmission
Data Storage   99 groups
Zero Adjustment Press ZERO to return to zero, remove residual magnetism induction, and then clamp the wires to be tested.
Data Hold
Line Voltage not beyond 600V
Auto Power Off 5 min
Low Battery Indication Indicates low battery when the voltage is 7.2
Sampling Rate About 2 sec per time
Working Current 10mA
