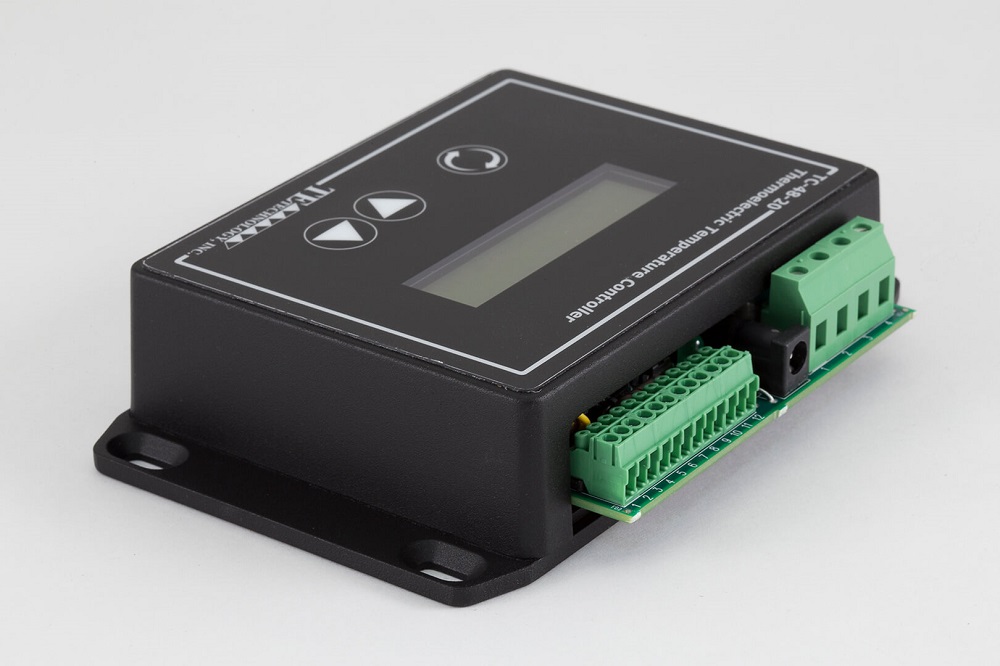

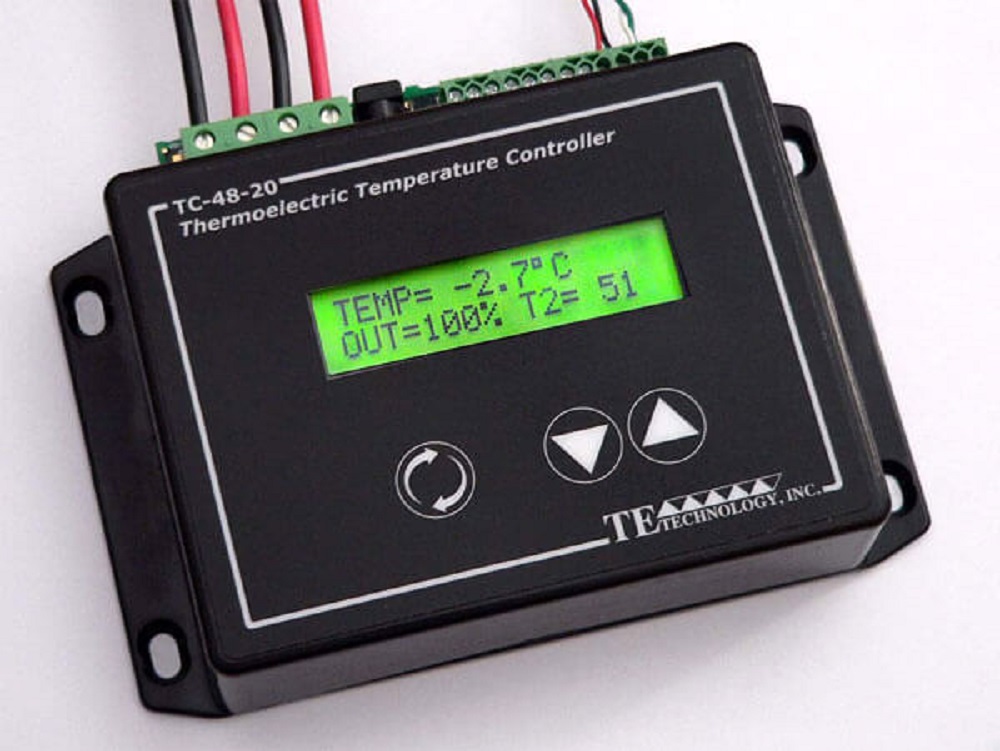

The TC-48-20 is an easy to use yet powerful cool-only or heat-only PWM temperature controller. It is housed in a die-cast aluminum box, incorporates a keypad and display, and is capable of controlling from 0 to 50 volts and up to 20 amps. Two versatile alarm outputs are included, each capable of switching up to 1 amp of current. If a true linear-output control system is desired (for applications extremely sensitive to electrical noise) the TC-48-20 can be used as the control head for high-power, variable-output linear supplies. Most control parameters can be programmed via the built-in keypad, but the controller can also be connected to a computer via an optional RS232 serial cable for more advanced program control as well as data graphing and data logging. The software is shipped as a stand-alone program, but the LabVIEW source code (version 2011 and higher) is also available upon request. A sample read and write command programmed in Python (2.7) is also available for download from the SOFTWARE tab on this web page. Labeled wiring cables are included free of charge when purchasing interconnected standard products on the same order (thermoelectric cooling assembly or module, temperature controller and/or a power supply). The number of cables included (1-3 pairs) will depend on the number of components being interconnected.

• Control board, keypad and display housed in a durable metal enclosure provide a complete temperature control solution
• Single or dual power supply configurations allow a wide range of output voltages (power supply(s) not included–order separately per application)

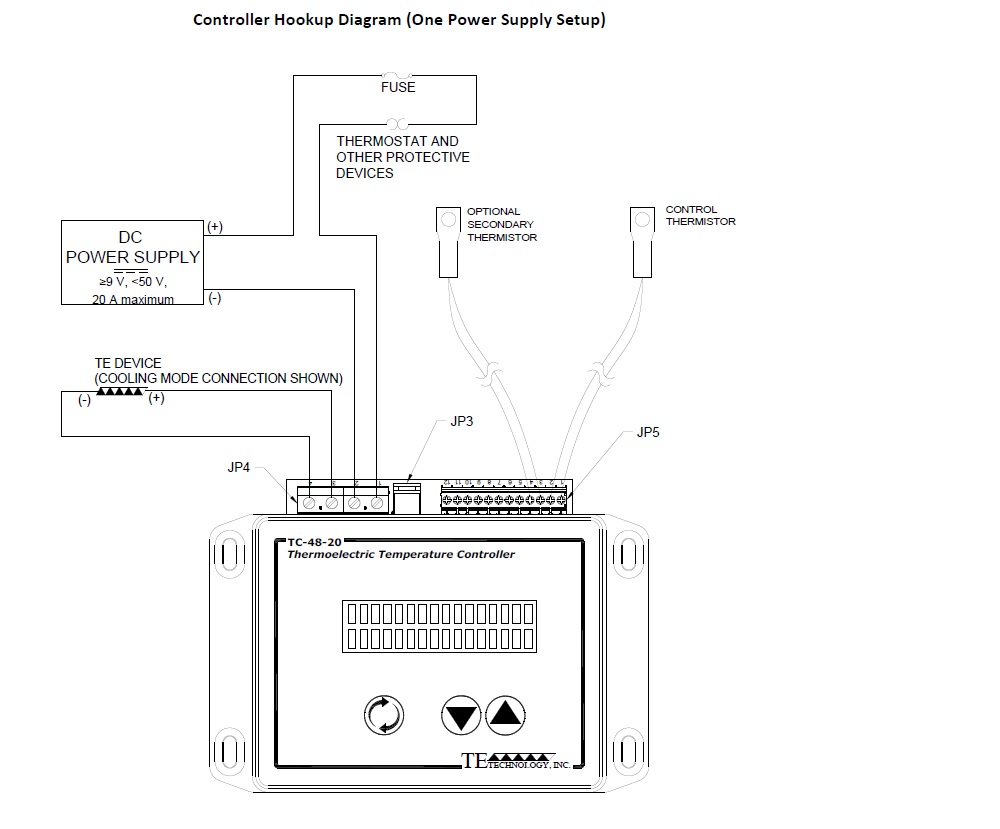

• Single power supply configuration: ≥9 VDC, <50 VDC input, powering both controller and TE device
• Dual power supply configuration: ≥9 VDC, <50 VDC at 150 mA minimum for controller circuitry ≥0 VDC, <50 VDC for TE device
• Maximum output current: 20 A combined TE device and alarm current (Note: controller does not have current limiting capability or internal fuse protection)
• Cool-only or heat-only control modes, menu selectable
• Temperature control range: -20 C to +100 C using the MP-3193 thermistor supplied with the controller, or -20 C to +85 C using a thermistor equivalent to 10 k-ohm, curve “B” from YSI Temperature, Inc.
• Optional secondary thermistor input for sensing alarm conditions
• Two available alarm outputs, capable of sinking up to 1 A each, for triggering alarms based on the primary (control) sensor and/or secondary sensor
• Best-case control stability 0.1 C (when controlling a cold plate)
• Proportional (P) bandwidth adjustment: 0.5 C to 100.0 C
• Integral gain (I) adjustment: 0.00 to 10.00 repeats per minute
• Derivative gain (D) adjustment: 0.00 to 10.00 cycles per minute
• Output: square wave, 337 Hz, pulse-width modulated, with soft start
• Analog proportional output signal for controlling programmable linear power supplies
• Operating temperature range (non-condensing, total combined alarm and load current): Minimum: 0 C, Maximum: 48 C in horizontal orientation, 20 A output; 55 C vertical orientation, 20 A output; 53 C horizontal orientation, 17 A output; 59 C vertical orientation, 17 A output.
• Built-in keypad can be used to program most of the controller’s parameters by way of easy to understand options.
• Computer programmable via RS 232 communication; includes software (An optional RS-232 cable, part number MP-3023, is required)
• RoHS compliant
