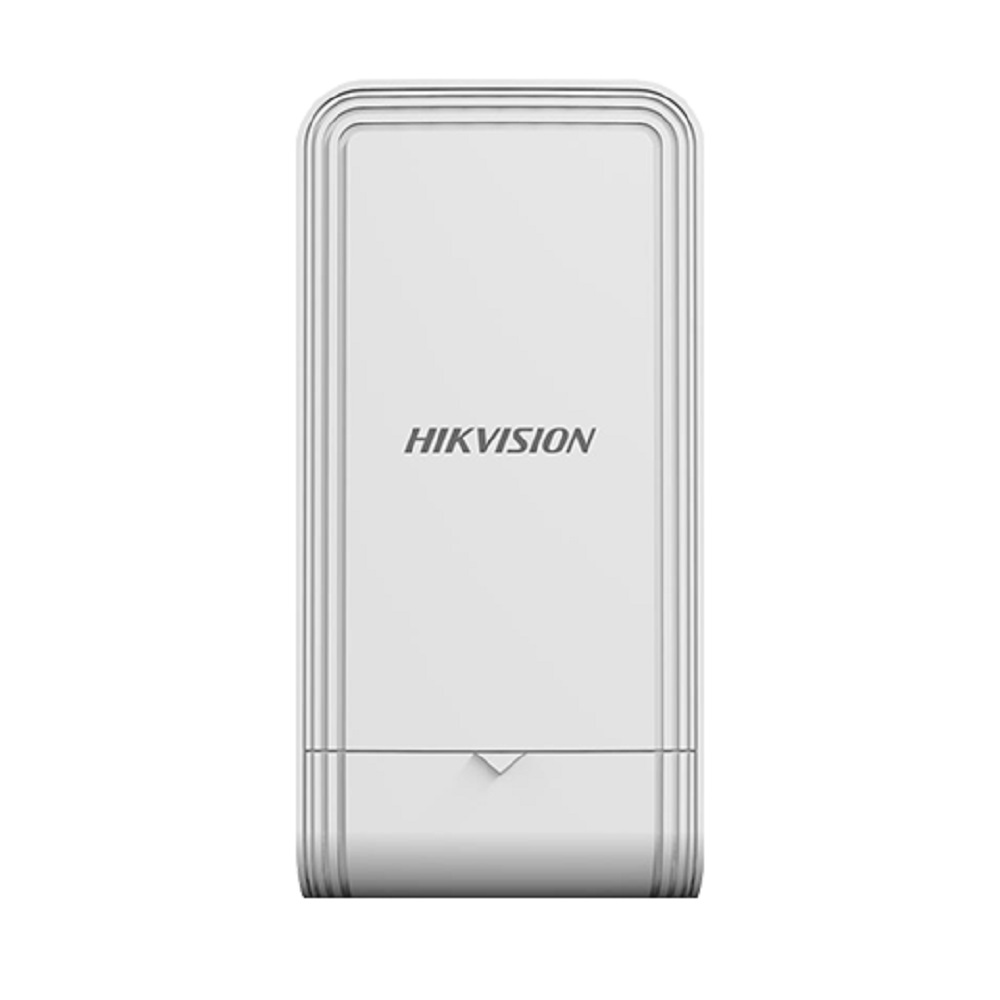

5Ghz 867Mbps 5km Outdoor Wireless CPE

DS3/WF02C5ACO

Status: Out of Stock

HIKVISION

was CA$132.00

now CA$99.99

Description

Description

  • 5Ghz 867Mbps 5km Outdoor Wireless CPE
  • All gigabit LAN ports
  • TDMA supported
  • Quick match through DIP switch
  • Visualized topology management
  • Up to 5 km wireless transmission distance
  • Note: This firmware is ONLY for DS-3WF02C-5AC/O V3 version, please double check the sticker on the device or package. DO NOT upgrade V2-verision device with this firmware, otherwise it will cause breakdown.

Specifications

Specifications

  • General
  • Product Dimensions (W × H × D)92 mm × 187 mm × 58 mm (3.62'' × 7.36'' × 2.28'')
  • Package Dimensions (W × H × D)132 mm × 228 mm × 91 mm (5.19" × 8.97" × 3.58")
  • Net Weight0.307 kg (0.677 lb)
  • Gross Weight0.807 kg (1.779 lb)
  • Packing ListWireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,Binding Tape × 2,Quick Start Guide ×1
  • Packing MethodSingle unit packing
  • Working Temperature-30 °C to 70 °C (-22 °F to 158 °F)
  • Working Humidity5% to 95% (no condensation)
  • Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
  • Storage Humidity5% to 95% (no condensation)
  • Installation ModePole Mounting
  • Ingress ProtectionIP55
  • Power Consumption2.65 W for typical (1-ch 2MP IPC), Max. 4.5 W
  • Wireless Parameter
  • Max. Transmission Rate of Air Interface≤ 867 Mbps
  • Wireless StandardIEEE 802.11/a/n/ac
  • Working Frequency Band5150 MHz ~ 5250 MHz,5250 MHz~ 5350 MHz,5470 MHz~ 5725 MHz,5725 MHz~ 5850 MHz
  • Antenna Gain12 dBi
  • Antenna Angle(H) Beamwidth [3 dB] 35° (V) Beamwidth [3 dB] 35°
  • Transmitting Power22 dBm @11ac MCS0 (Note: Transmitting power may vary with local regulations.)
  • Receiving Sensitivity-84±2dBm@AC80-MCS0
  • Throughput RatePTP: ,230 Mbps/0.5 KM(AC80),200 Mbps/1 KM(AC80),40 Mbps/5 KM(AC80),PTMP(1 to 8): ,80 Mbps/1 KM(AC80)
  • Hardware Parameter
  • Network Interface2 × 1000 Mbps RJ45 ports
  • LED IndicatorPower indicator,LAN indicator,Signal intensity indicator
  • ResetHardware resetting button
  • Power Supply12 VDC/1 A Passive PoE
  • Software Function
  • Application FunctionTDMA,DFS,TPC,IFM,IPM
  • Channel Width20/40/80 MHz
  • Channel SelectionAuto/manual selection
  • Network ProtocolNTP (network time synchronization),SADP (auto search for IP address),HTTPS (web management),SSH (debugging)
  • Security ModeWPA2-PSK
  • Security MechanismWireless network name hidden
  • Management MethodWeb,iVMS-4200,HCP
  • UpgradeWeb,iVMS-4200,HCP
  • System LogSyslog,Control center information
