TP-LINK AC1200 AP EXTERIEUR

TLE/AP225OUT

Status: In stock

CA$129.99

Description

Description

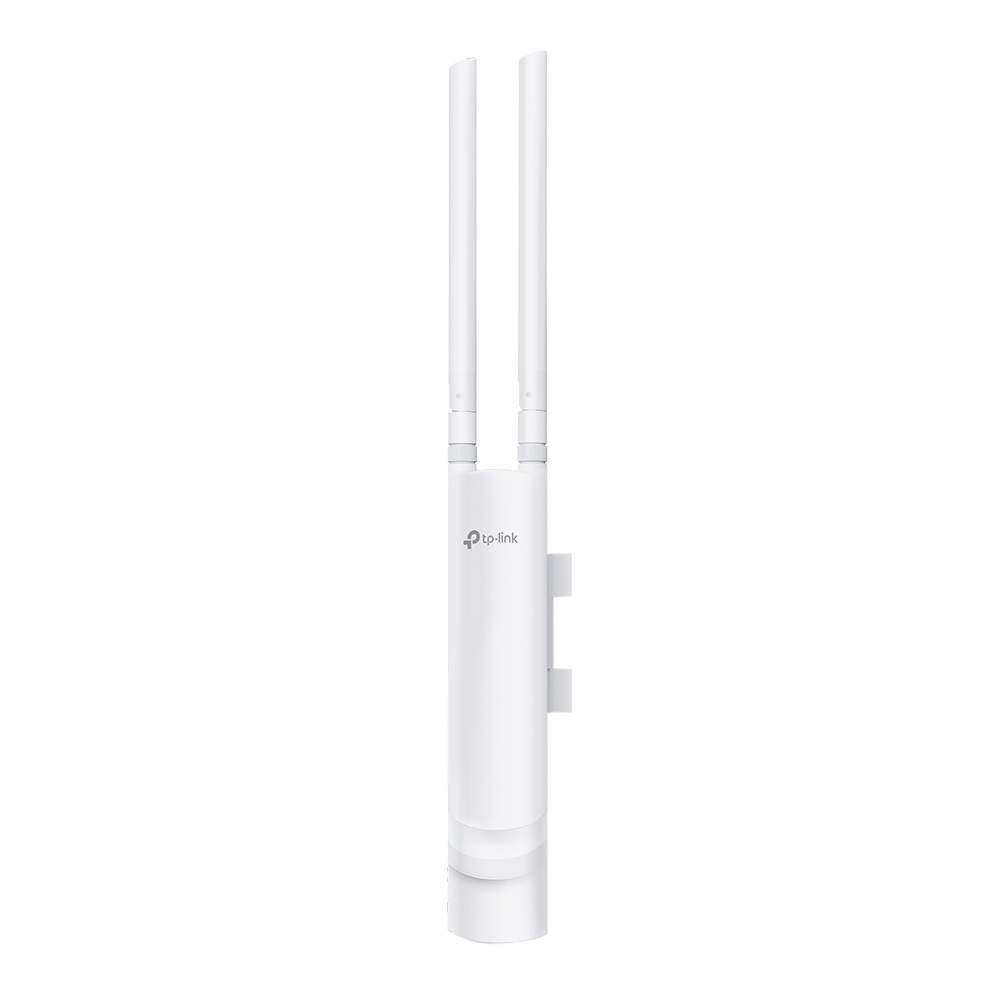

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps1 with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Free cloud centralized management and Omada app for ultra convenience and easy management
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS anthentication help to boost your business
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installatio

Specifications

Specifications

Interface One gigabit Ethernet RJ-45 port (Support 802.3af PoE and Passive PoE)
Button Reset
Power Supply 802.3af PoE and 24 Passive PoE(PoE injector included)
Max. Power Consumption 10.5W
Dimensions ( W x D x H ) 8.5 × 1.8 × 1.1in.
(215 × 46 × 27 mm)
Antenna 2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi
Weatherproof Enclosure IP65

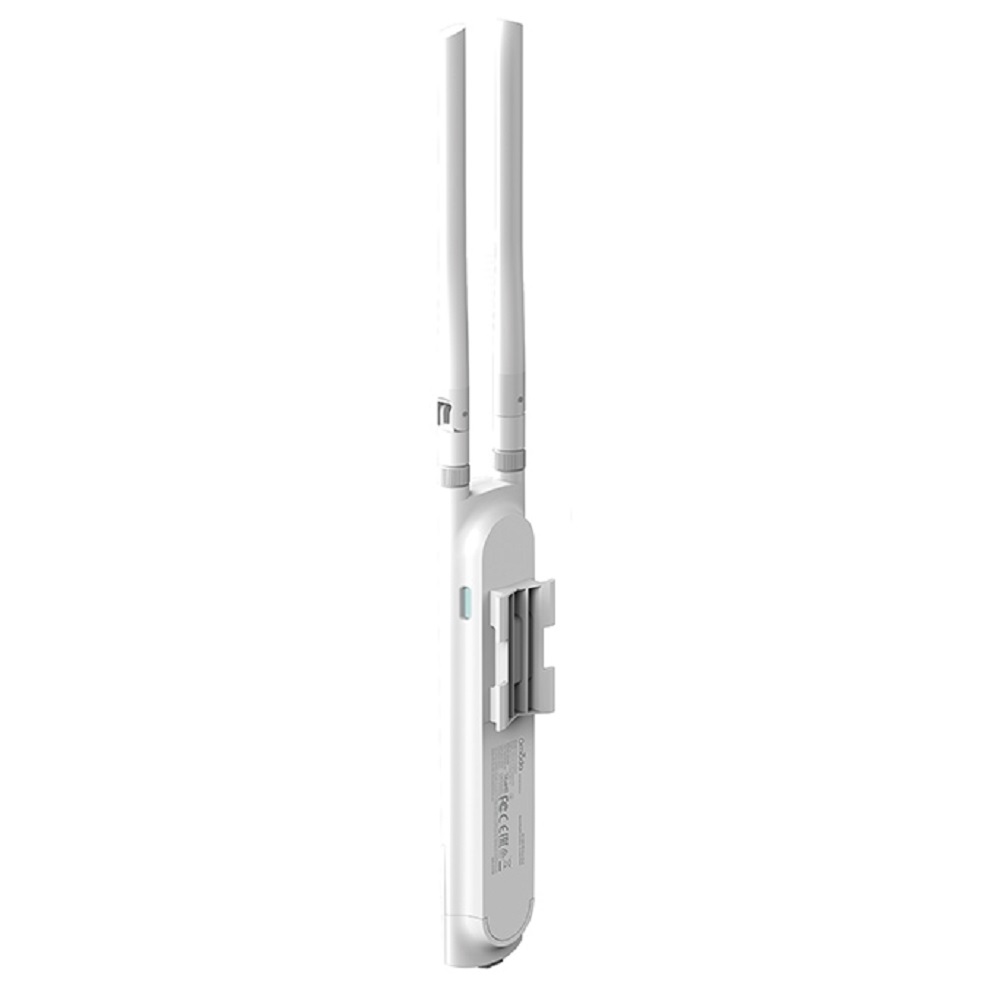

Mounting Pole/Wall mount (mounting kit included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Concurrent Clients 220+**
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power • CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
• FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
Management Features
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
