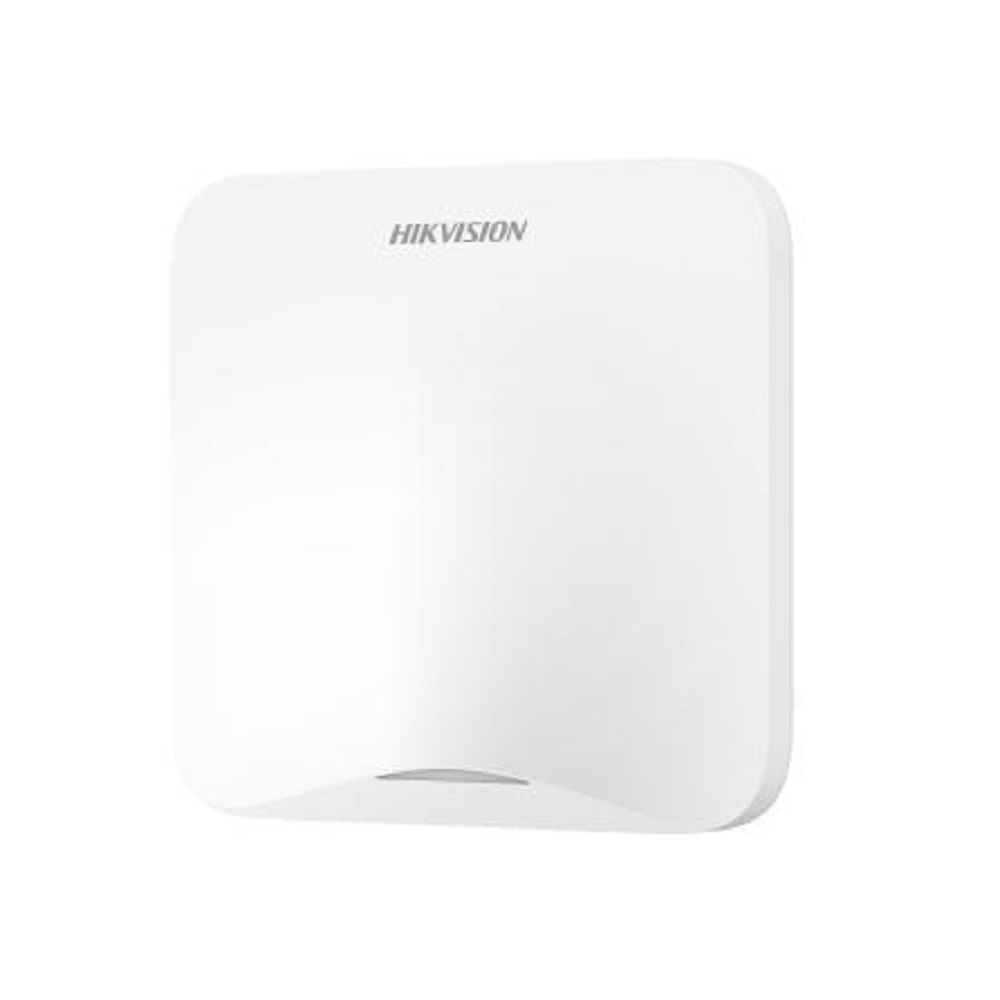

Control Panel

• Capacity
• Areas8
• Wireless zones32
• Wireless keypads4
• Wireless sounders4
• Wireless keyfobs16
• Logs1000
• ARC1
• Installer3
• Admin1
• User12

• Communication
• Transmission technology912.5~917.4 MHz
• Transmission range (free space)up to 2,000 m
• Maximum effective radiated power (ERP)25 mW max
• Radio signal modulation2GFSK
• EncryptionAES-128
• Ethernet1 8P8C socket
• Ethernet speed≤10Mbps
• Wi-Fi802.11 b/g/n
• Cellular4G
• SIM slots1

• Notifications
• APP notificationsYes
• SMS notificationsYes
• Calls notificationsYes
• ARC notificationsYes
• Event types

  Alarms

  Faults

  System Events

  Operations

• Software features
• Protocol

  SIA-DCS

  *SIA-DCS

  ADM-CID

  *ADM-CID

  OTAP

  Other proprietary protocols

• Upgrade OTAYes

• Hardware features
• Tamper-ProofYes

• Indication
• Indication methodLED

• Electrical characteristics
• Power consumption

  max current: 0.2 A

  quiescent current: 90 mA

• Mains power110-240 V~, 50/60 Hz
• Built-in backup batteryYes
• Battery lifeUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

• Wireless transmission
• RF frequency915 MHz

• General
• Dimension (W×H×D)165 x 165 x 37.5 mm
• Shell material165 x 165 x 37.5 mm
• Weight410 g
• Operation temperature-10 °C to +55 °C
• Operation humidity10% to 90%
