KIT ALARME SANS-FIL AX HOME PAN,CLA,REM,MOUV,MAG,SIR

DSP/A201PSKIT

Status: Out of Stock

CA$399.99

Qty:

Description

Description

Communication
Transmission technology912.5~917.4 MHz
Wi-Fi802.11 b/g/n
Cellular4G

General

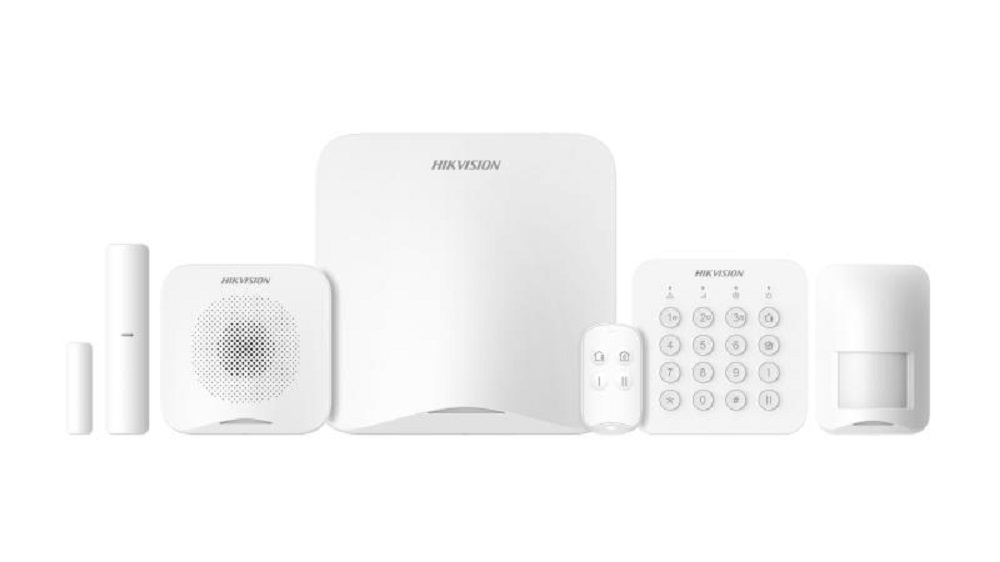

Complete set

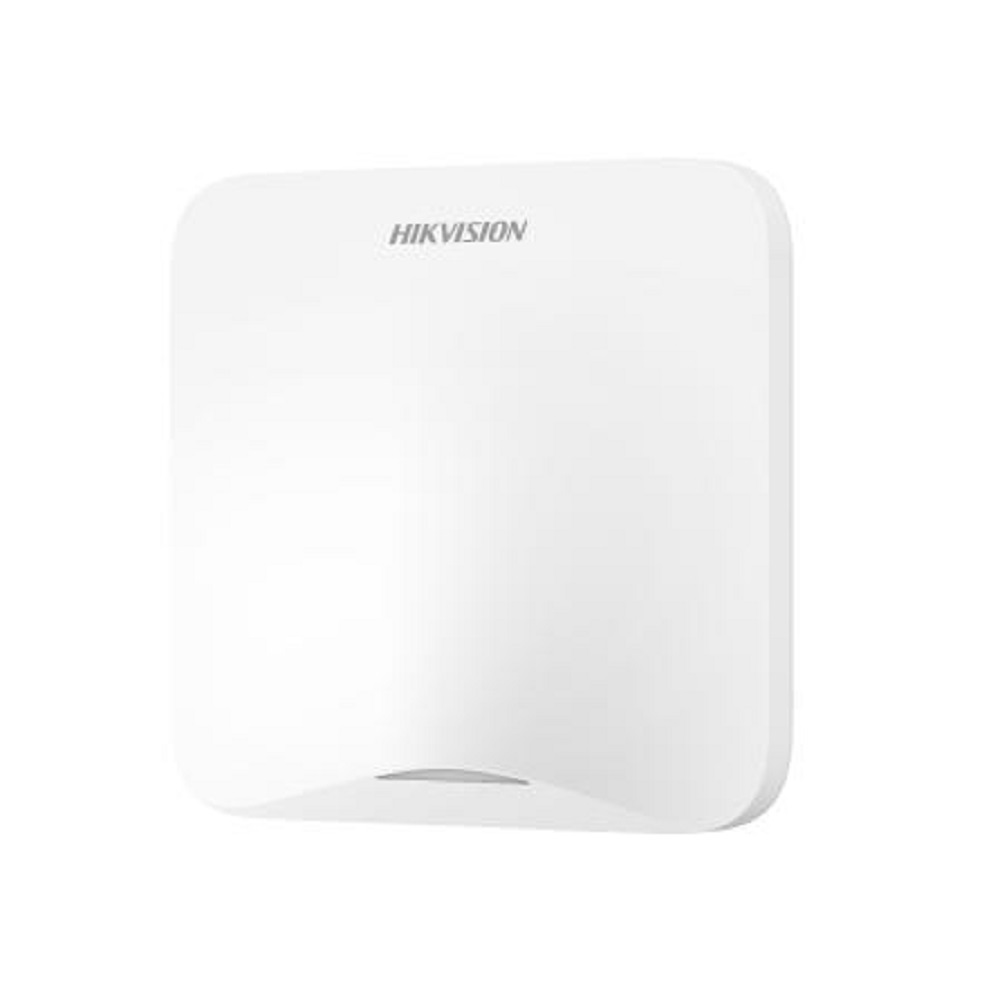

- Control Panel × 1

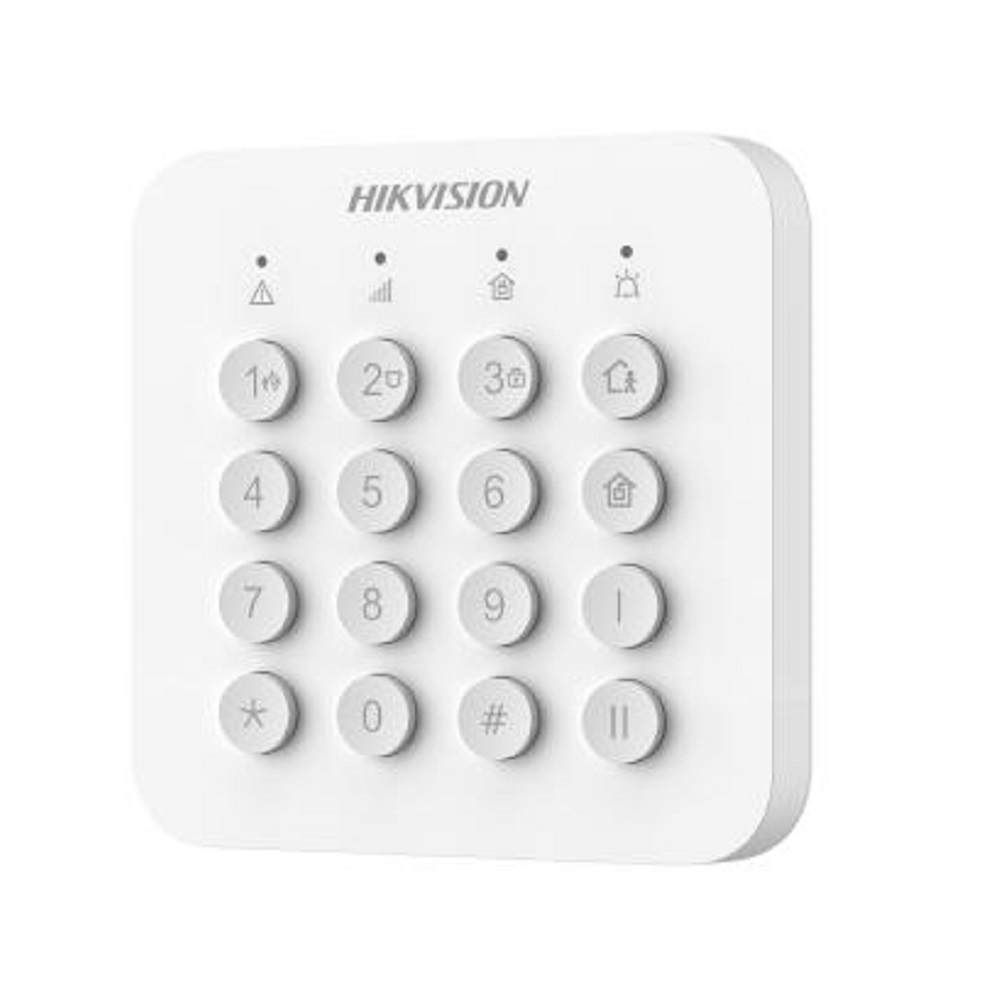

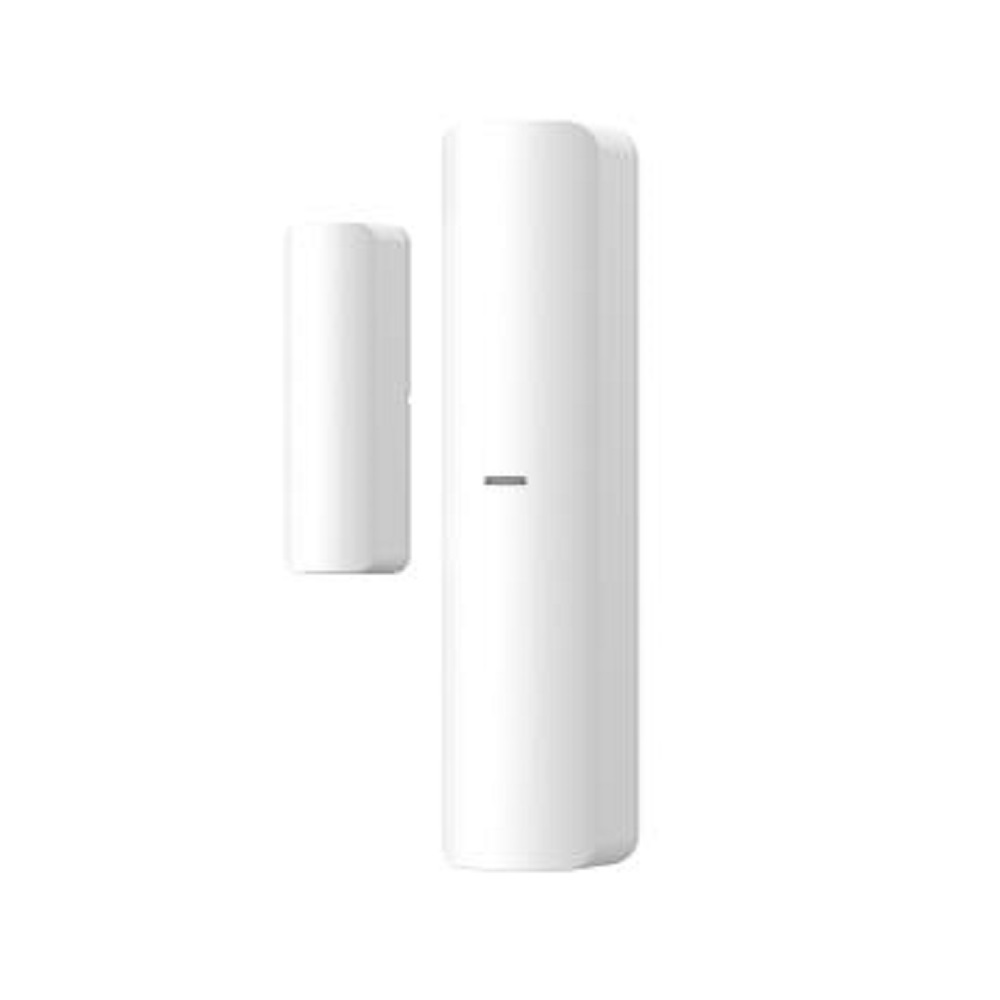

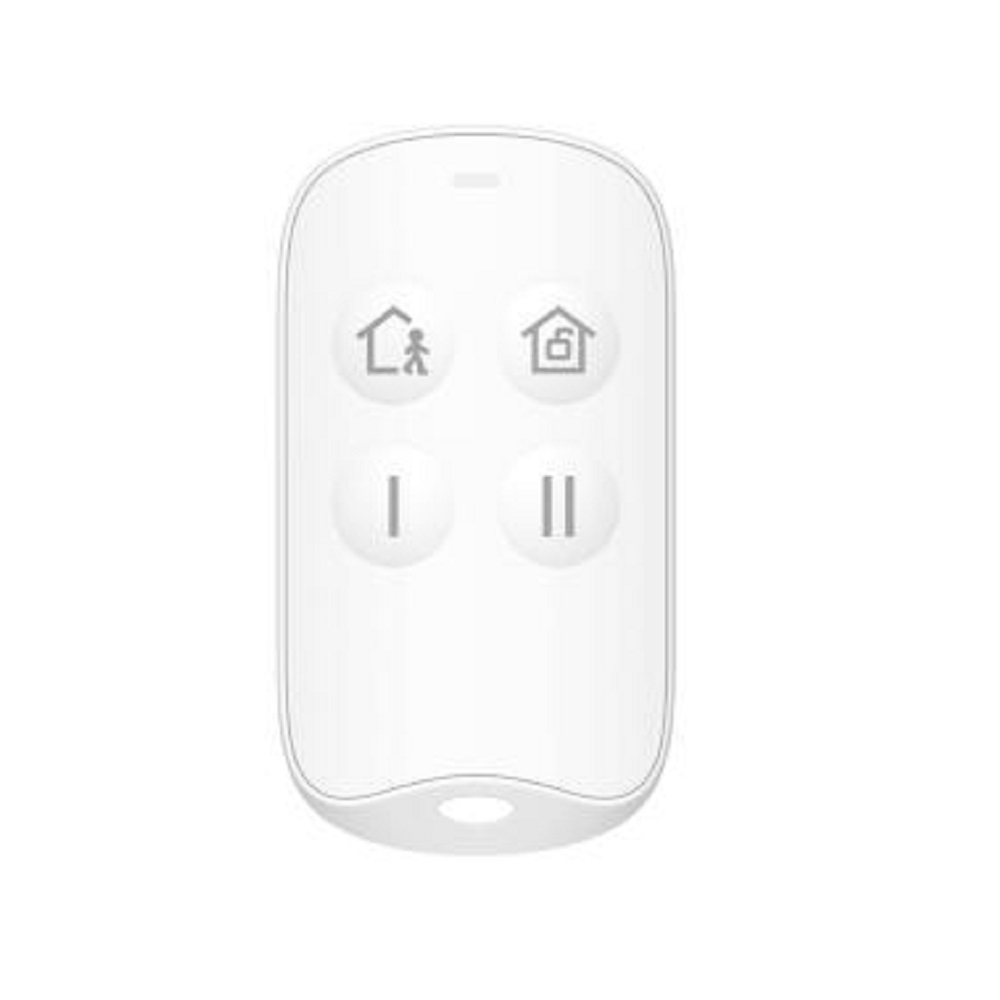

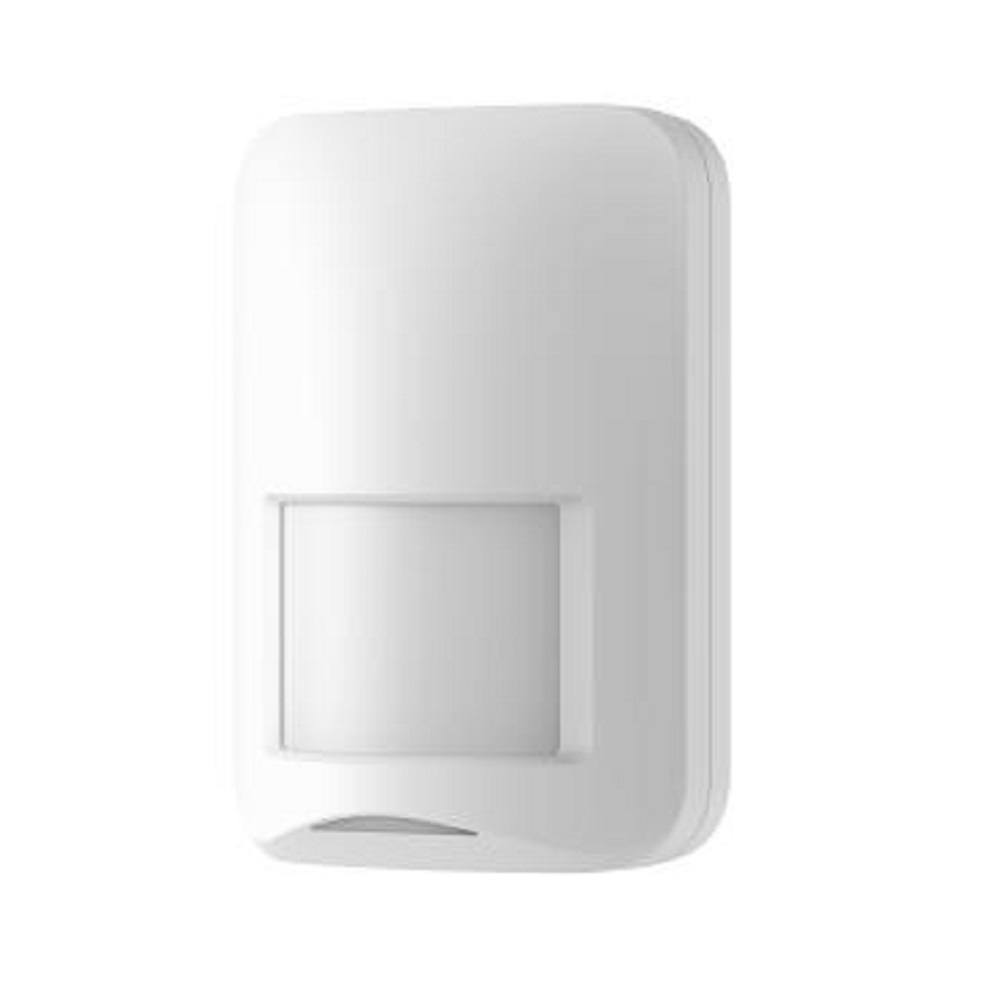

- Wireless Keyfob × 1Wireless PIR Detector × 1Wireless Magnetic Contact × 1Wireless LED Keypad × 1Wireless Sounder Indoor × 1
Dimension (W×H×D)300 × 270 × 135 mm
Weight2245 g
Operation temperature-10 °C to +55 °C
Operation humidity10% to 90%

Specifications

Specifications

Capacity
Areas8
Wireless zones32
Wireless keypads4
Wireless sounders4
Wireless keyfobs16
Logs1000
ARC1
Installer3
Admin1
User12

Communication
Transmission technology912.5~917.4 MHz
Transmission range (free space)up to 2,000 m
Maximum effective radiated power (ERP)25 mW max
Radio signal modulation2GFSK
EncryptionAES-128
Ethernet1 8P8C socket
Ethernet speed≤10Mbps
Wi-Fi802.11 b/g/n
Cellular4G
SIM slots1

Notifications
APP notificationsYes
SMS notificationsYes
Calls notificationsYes
ARC notificationsYes
Event types
Alarms

Faults

System Events

Operations

Software features
Protocol
SIA-DCS

*SIA-DCS

ADM-CID

*ADM-CID

OTAP

Other proprietary protocols
Upgrade OTAYes

Hardware features
Tamper-ProofYes

Indication
Indication methodLED

Electrical characteristics
Power consumption
max current: 0.2 A

quiescent current: 90 mA
Mains power110-240 V~, 50/60 Hz
Built-in backup batteryYes
Battery lifeUp to 12 hours at normal temperature (The battery working time can be significantly reduced at low temperatures)

Wireless transmission
RF frequency915 MHz

General
Dimension (W×H×D)165 x 165 x 37.5 mm
Shell material165 x 165 x 37.5 mm
Weight410 g
Operation temperature-10 °C to +55 °C
Operation humidity10% to 90%
