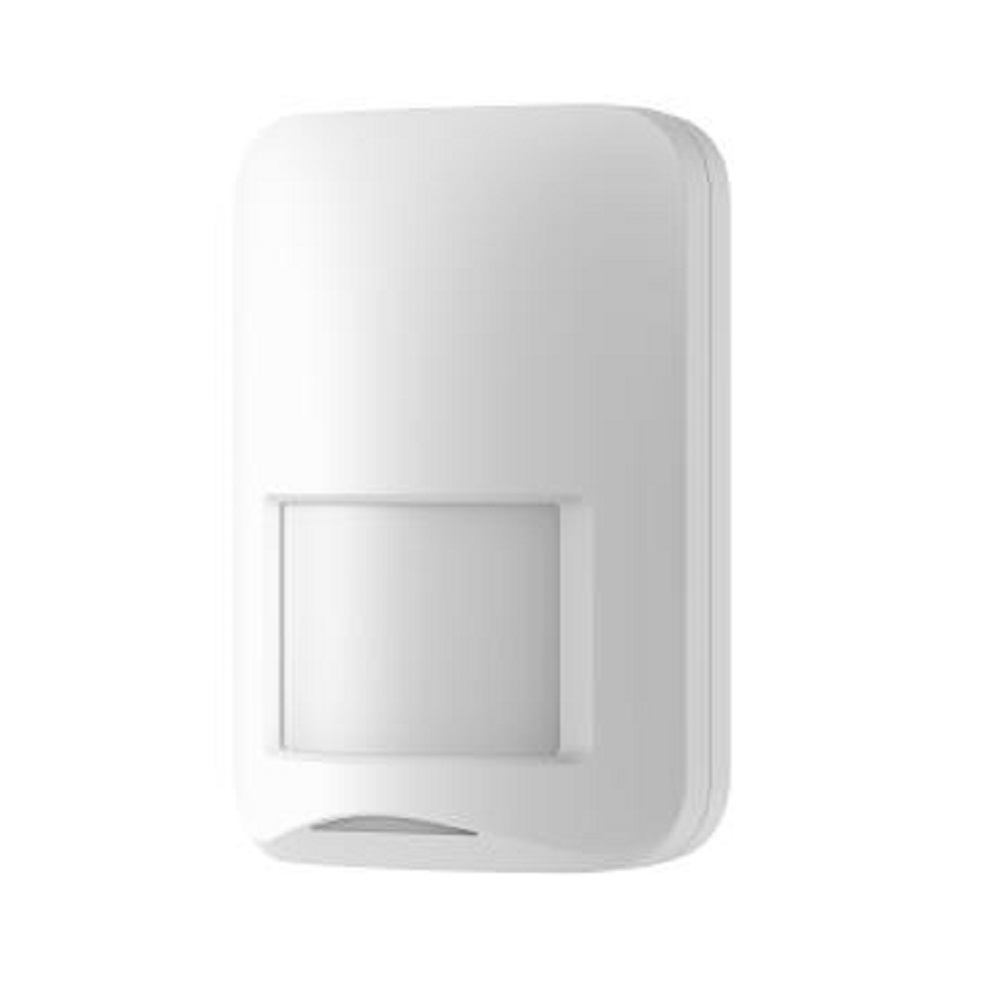

Wireless PIR Detector

• Communication
• Transmission technology912.5~917.4 MHz
• Transmission range (free space)Up to 1,600 m
• Maximum effective radiated power (ERP)25 mW max
• Radio signal modulation2GFSK

• Detection performance
• Detection methodPassive Infrared
• Sensor modelSFG321-711
• Detection range10 m
• Detection angle90°
• Detection zones78
• Detectable speed0.3~2m/s
• SensitivityHigh, Auto, Low
• Pet immunity24 Kg at low sensitivity
• White light filter3500lux
• Digital processingYes
• Sealed opticsYes

• Software features
• Temperature indicatorYes

• Indication
• Indication methodLED

• Electrical characteristics
• Power supply2 × AA batteries
• Power consumption

  max current: 50 mA



•                                                                       quiescent current: 8 uA

• Battery lifeUp to 2 years (standby time)

• General
• Installation methodIndoors
• Installation height2 m to 2.4 m
• Operation temperature-10 °C to 55 °C (14 °F to 131 °F)
• Operation humidity10% to 90%
• Dimension (W×H×D)62 x 93 x 41.5 mm
• Weight71.5 g
• BracketOptional Wall & Ceiling brackets, sold separately
