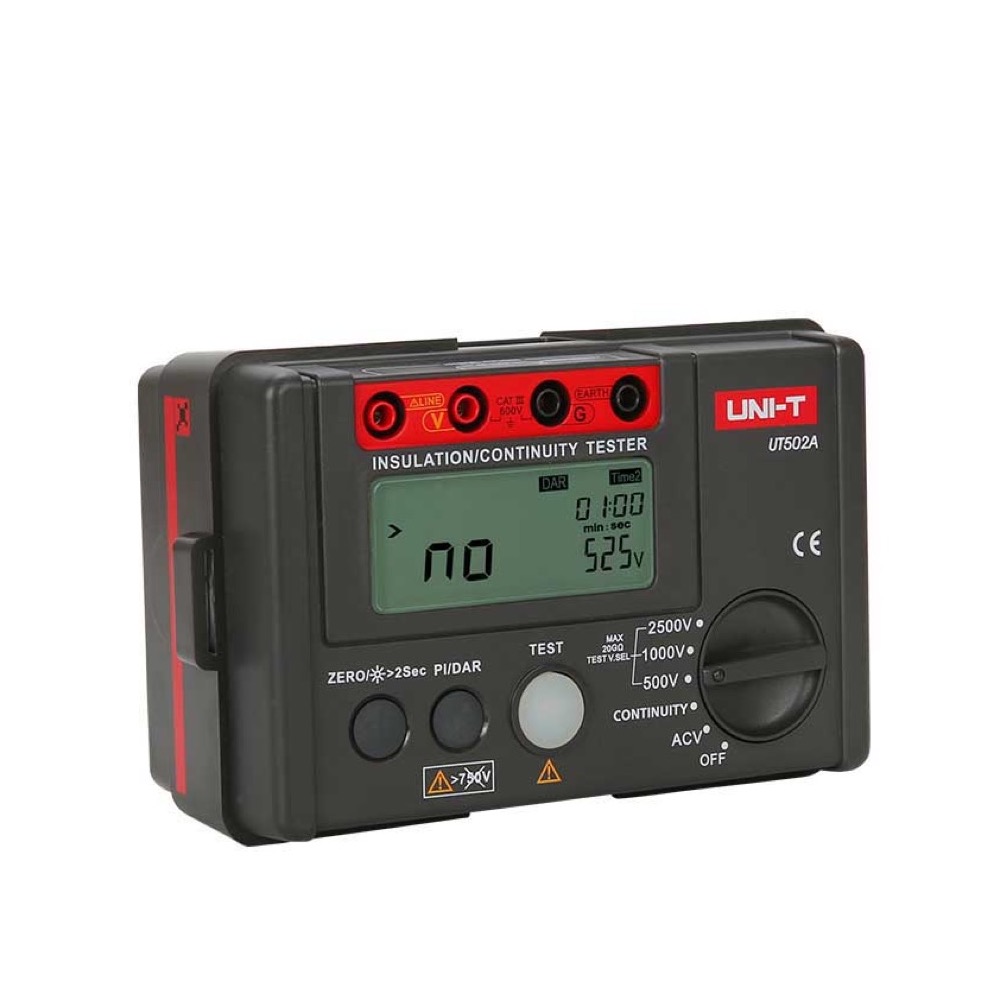

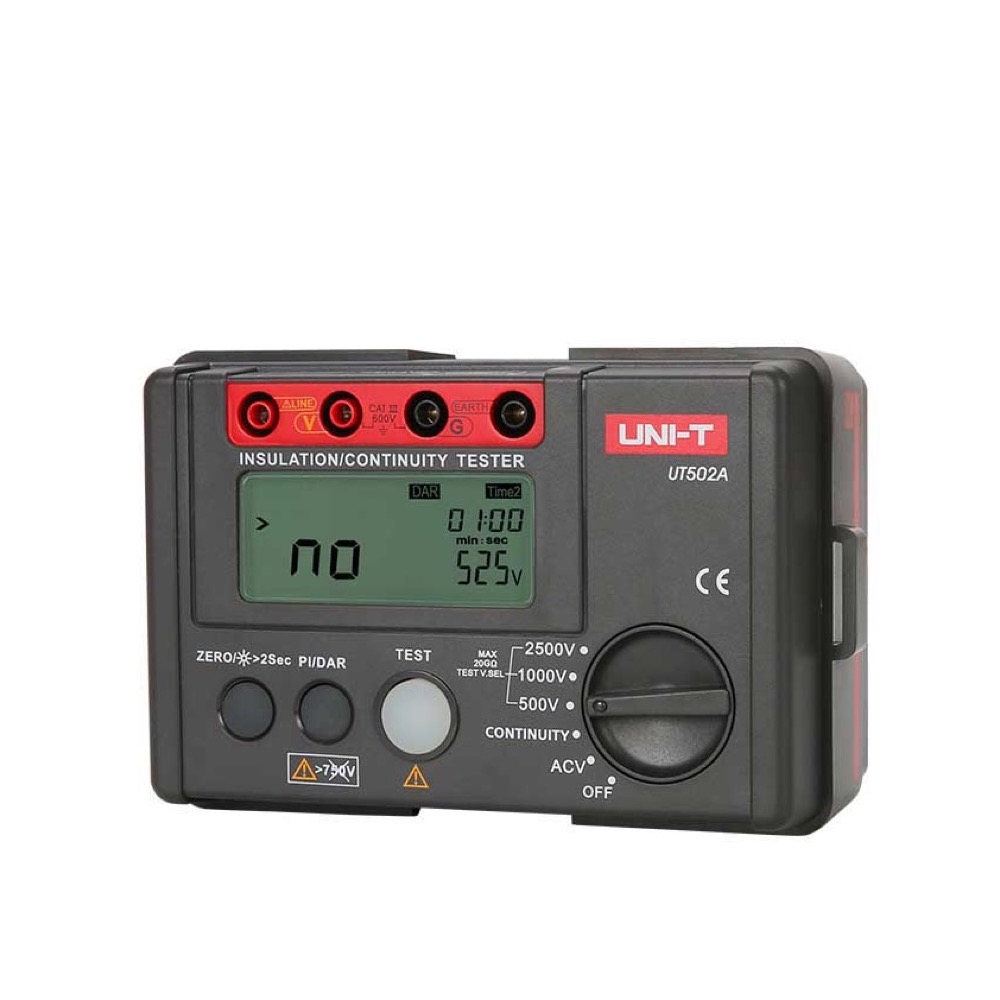

TESTEUR D'ISOLATION 500V/1000V/2500V

UT5/02A

Statut: En stock

CA$119.99

Description

Description

● 2000 count LCD display, overload indication, backlight

● AC voltage measurement, auto power off
● Auto discharge
● Continuous low resistance measurement
● Continuous measurements mode, red warning light and buzzer function
● PI and DAR measurement, auto resistivity calculation
● Low resistance returning to zero function to improve accuracy

Spécifications

Spécifications

Specifications Range UT501A UT501B UT502A
Insulation resistance (Ω) Test voltages 100V/250V/500V/1000V 0%~10%
250V/500V/1000V   0%~10%
500V/1000V/2500V     0%~10%
100V 0MΩ~100MΩ ±(3%+5)
250V 0MΩ~99.9MΩ ±(3%+5) ±(3%+5)
100MΩ~5GΩ ±(5%+5) ±(5%+5)
500V 0MΩ~99.9MΩ ±(3%+5) ±(3%+5) ±(3%+5)
100MΩ~5GΩ ±(5%+5) ±(5%+5) ±(5%+5)
1000V 0MΩ~99.9MΩ ±(3%+5) ±(3%+5) ±(3%+5)
100MΩ~5GΩ ±(5%+5) ±(5%+5) ±(5%+5)
2500V 0MΩ~99.9MΩ     ±(3%+5)
100MΩ~9.9GΩ     ±(5%+5)
10GΩ~20GΩ     ±(10%+5)
Load current 50V (R=50kΩ) 1mA 0%~10% 0%~10% 0%~10%
100V (R=100kΩ) 1mA 0%~10% 0%~10% 0%~10%
250V (R=250kΩ) 1mA 0%~10% 0%~10% 0%~10%
500V (R=500kΩ) 1mA 0%~10% 0%~10% 0%~10%
1000V (R=1MΩ) 1mA 0%~10% 0%~10% 0%~10%
2500V (R=1MΩ) 1mA     0%~10%
