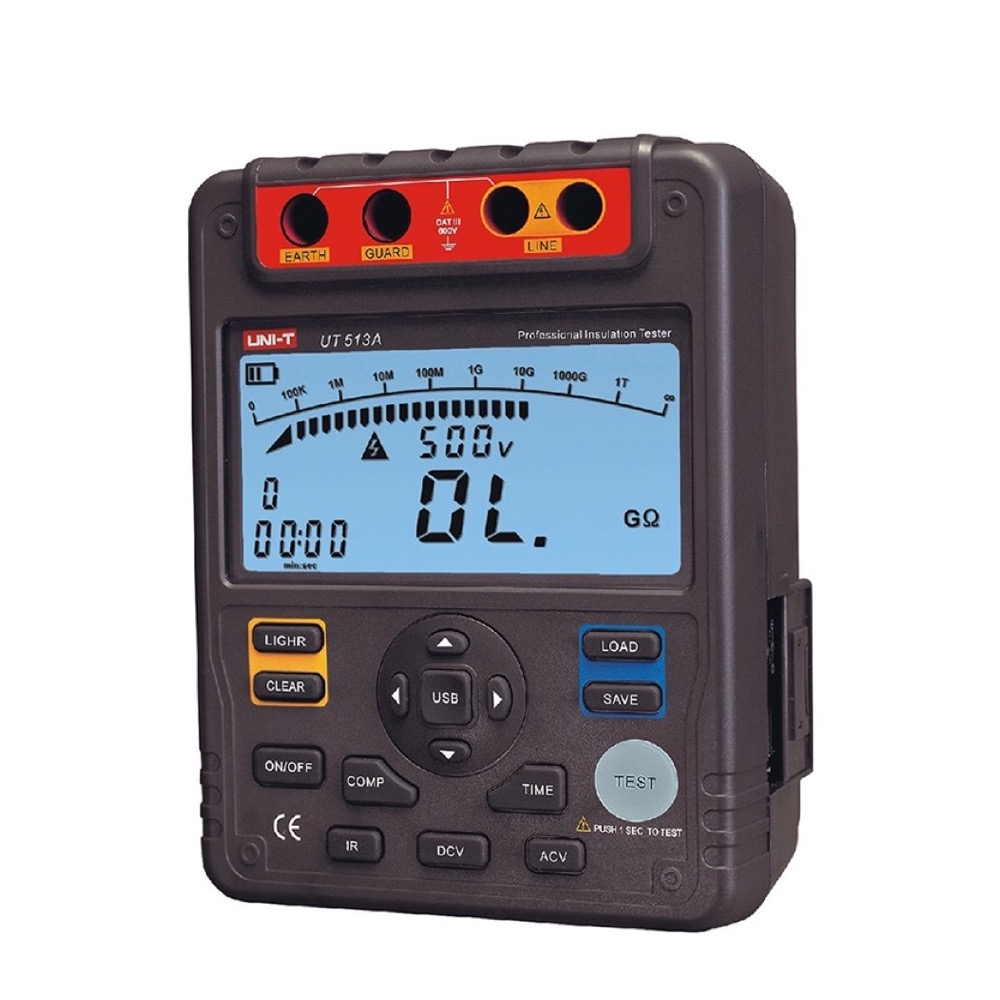

TESTEUR D'ISOLATION 500V/1000V/2500V/5000V

UT5/13A

Statut: En stock

CA$399.99

Description

Description

● Large 9999 display with 30-segment analog bar graph

● PI/DAR measurements
● Comparison, upper and lower limit functions
● Continuous measurement mode
● Auto power off
● 18-group data storage
● Backlight
● Auto current discharge and high-voltage output alarm
● Time measurement mode, auto measure within 15 minutes
● Low battery and over range indications

Spécifications

Spécifications

Specifications Range UT511 UT512 UT513A
Insulation resistance (Ω) Test voltages 100V~1000V 0%~10%
500V~2500V   0%~20%
500V~5000V     0%~20%
100V 0.1MΩ~500MΩ ±(3%+5)
250V 0.5MΩ~2GΩ ±(3%+5)
500V 1MΩ~4GΩ ±(3%+5)
0.5MΩ~5GΩ   ±(3%+5)
0.5MΩ~20GΩ     ±(3%+5)
1000V 2MΩ~10GΩ ±(3%+5) ±(3%+5)
1MΩ~40GΩ     ±(3%+5)
1500V 5MΩ~20GΩ   ±(3%+5)
2500V 2.5MΩ~100GΩ     ±(3%+5)
10MΩ~100GΩ   ±(3%+5)
5000V 5MΩ~1000GΩ     ±(3%+5)
DC voltage (V) 1000V ±(2%+3)
600V   ±(2%+5) ±(2%+3)
AC voltage (V) 750V ±(2%+3)
600V   ±(2%+5) ±(2%+3)
Short-circuit current
